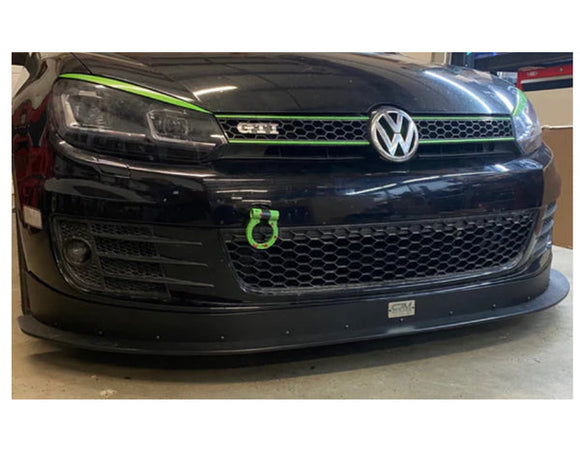

CJM Industries MK6 GTI & Golf R Chassis Mounted Splitter/Lip

All sales are final. This item does not qualify for free shipping

Made in USA - 2 year warranty.

Please read these product details thoroughly for fitment and installation requirements. This can be completed in a driveway with basic tools. Please review the install sheet and tool list to understand what is involved in the process. Professional install recommended if you are not comfortable removing the front crash bar.

• Brackets & rods come in raw aluminum, expect some visible imperfections in the material from the cutting and bending process.
• This will not fit with any front mount/twin intercooler.

• If you are on air ride, do not air-out onto these brackets, they are not designed to support the weight of an entire vehicle.
• Speed tested to 140mph.
• Requires drilling four 11mm holes in the crash bar for install.
• Trimming of the factory splash guard is required (not the bumper). Install sheet can be reviewed here. Splash guard trimming template included.
• Brackets are made of 5052 Aluminum, these mount to 6 points of the chassis/crash bar to hold a splitter blade of your choice.
• This is a great option to DIY your own blade, or purchase the entire assembly ready to bolt on. (You can buy just the brackets, or the brackets with a blade).
• Designed for blades with up to 100mm of stick-out. Front rods suggested on blades over 80mm to prevent flutter of the front edge (80mm lip doesn't need them). Warranty is void if you use a blade larger than 80mm without front chassis mounted rods.
• The brackets and rods are raw aluminum and contain zinc coated steel hardware.
• If you are in a region that salts the roads in the winter, this will increase the need to clean and maintain each component more frequently. We can apply a clear coating called Sharkhide, but it will not last forever, you will need to recoat them over time to If you want to prevent discoloration over time. You can also powdercoat or paint with a rattle can for easier maintenance.

Each Order includes:

- Top Driver & Passenger side Bracket

- 2x bottom Brackets with pre-installed rivnuts for the lip/blade

- Center support brace with pre-installed rivnuts for the lip/blade

- Flange head bolts and nylock hardware for adjustable height settings

- M10 Flange head bolts and nylock hardware to mount to the Chassis.

- M10 countersunk hardware to attach a blade to brackets (3/8" or thinner blade)

- Blue medium threadlocker for blade bolts.

- Printed Install Sheet with pictures

- Template to trim plastic splash guard
