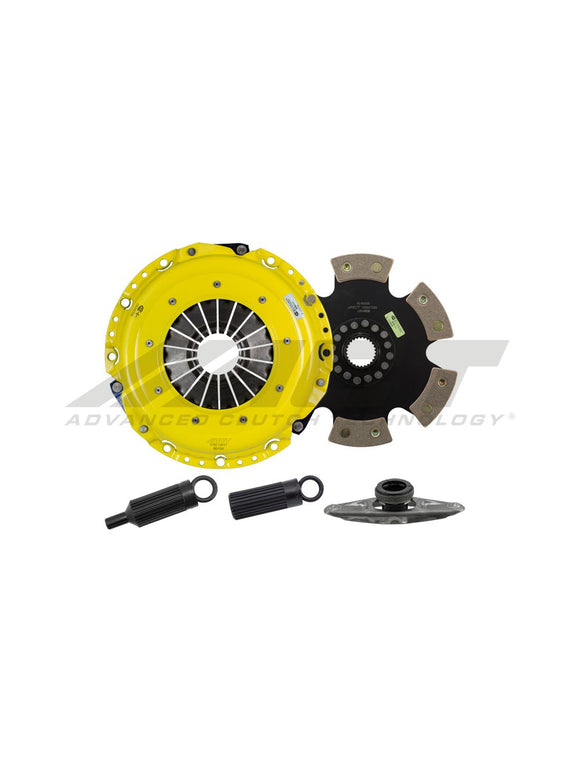

ACT XT/Race Rigid 6 Pad Clutch Kit | Multiple Fitments

XT/Race Rigid 6 Pad Clutch Kit by ACT

BM14-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

• Product Weight (lbs.): 14.9
• Torque Capacity (ft/lbs.): 702
• Torque Capacity Over OE: 129%
• Disc Material: Ceramic
• Clutch Disc Diameter (Inches): 9.4
• Clutch Disc Diameter (Millimeters): 240
• Input Shaft Diameter (inches): 1.375
• Pressure Plate Type: Xtreme

Benefits

• Moderate to heavy pedal effort
• Aggressive engagement
• Increased gear rattle
• Moderate friction life
• Rigid design may increase spline wear
• Carefully engineered for improved durability
• High heat tolerance and reduced fade
• 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

• 2014-2016 BMW 435i xDrive
• 2009-2015 BMW 335i xDrive
• 2009-2010 BMW 535i xDrive
• 2008-2008 BMW 535xi
• 2008-2013 BMW 135i
• 2008-2014 BMW 535i
• 2014-2016 BMW 435i
• 2009-2016 BMW Z4
• 2007-2015 BMW 335i
• 2007-2008 BMW 335xi
• 2011-2013 BMW 335is

What's In The Box?

• 1 - ACT XT/Race Rigid 6 Pad Clutch Kit

Warranty

• ACT 1-Year Limited Warranty
