NS1-HDR6
| Item Description | HD/Race Rigid 6 Pad |
|---|---|
| Product Weight (lbs.) | 14.7 |
| Torque Capacity (ft/lbs.) | 475 |
| Torque Capacity Over OE | 90% |
| Disc Material | Ceramic |
| Clutch Disc Diameter (Inches) | 9.4 |
| Clutch Disc Diameter (Millimeters) | 240 |
| Input Shaft Diameter (inches) | 1 |
| Pressure Plate Type | Heavy Duty |
| Warranty | 12 Months (view details) |
Description

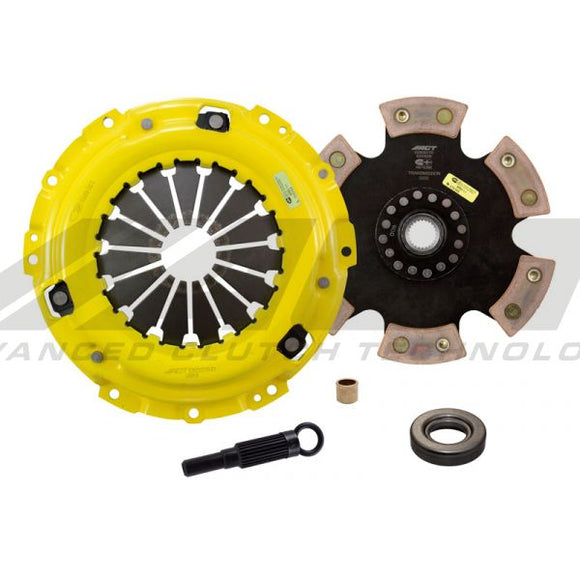

NS1-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
| Feel | Light to moderate pedal effort, aggressive engagement, increased gear rattle |
|---|---|
| Life | Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear |
| Quality | Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance |
| Recommended Use | Recommended for race use only |
| ACT Difference | 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
| Application | Engine |
|---|---|
| 1990 Nissan Bluebird SSS Attessa LTD. [JDM] | 2.0L I4 FI| T |
| 1991 Nissan Bluebird SSS Attessa LTD. [JDM] | 2.0L I4 FI| T |
| 1992 Nissan Bluebird SSS Attessa LTD. [JDM] | 2.0L I4 FI| T |
| 1993 Nissan Bluebird SSS Attessa LTD. [JDM] | 2.0L I4 FI| T |
| 1994 Nissan Bluebird SSS Attessa LTD. [JDM] | 2.0L I4 FI| T |
| 1995 Nissan Bluebird SSS Attessa LTD. [JDM] | 2.0L I4 FI| T |
| 1996 Nissan Bluebird SSS Attessa LTD. [JDM] | 2.0L I4 FI| T |
| 1997 Nissan Bluebird SSS Attessa LTD. [JDM] | 2.0L I4 FI| T |
| 1998 Nissan Bluebird SSS Attessa LTD. [JDM] | 2.0L I4 FI| T |
| 1991 Nissan Silvia K [JDM] | 2.0L I4 FI| T |
| 1992 Nissan Silvia K [JDM] | 2.0L I4 FI| T |
| 1993 Nissan Silvia K [JDM] | 2.0L I4 FI| T |
| 1994 Nissan Silvia K [JDM] | 2.0L I4 FI| T |
| 1995 Nissan Silvia K [JDM] | 2.0L I4 FI| T |
| 1996 Nissan Silvia K [JDM] | 2.0L I4 FI| T |
| 1997 Nissan Silvia K [JDM] | 2.0L I4 FI| T |
| 1998 Nissan Silvia K [JDM] | 2.0L I4 FI| T |
