T1S-G09

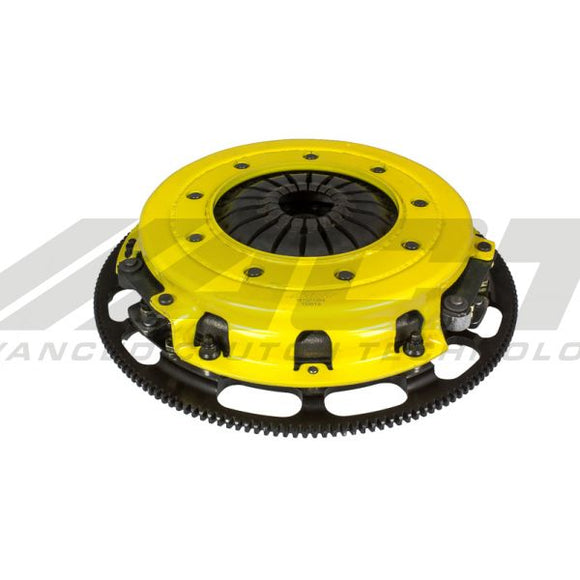

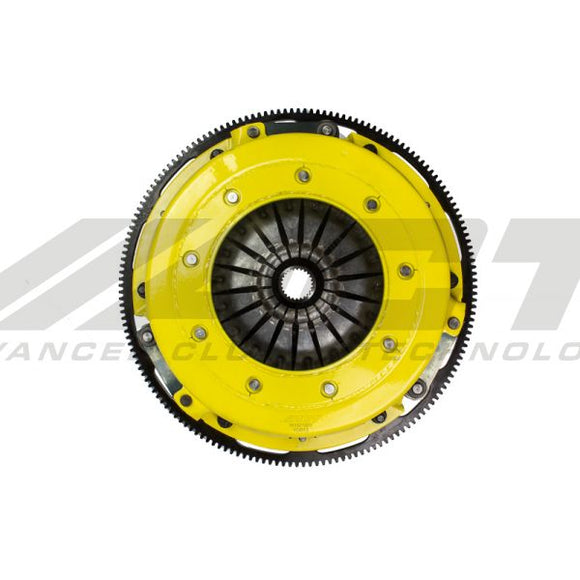

| Item Description | Twin Disc HD Street Kit |
|---|---|
| Product Weight (lbs.) | 41.1 |
| Torque Capacity (ft/lbs.) | 891 |
| Torque Capacity Over OE | 127% |
| Disc Material | Organic |
| Clutch Disc Diameter (Inches) | 10.5 |
| Clutch Disc Diameter (Millimeters) | 267 |
| Input Shaft Diameter (inches) | 1.125 |
| Warranty | 12 Months (view details) |
| SFI | 1.2 |
Description
T1S-G09 street, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc kits features the ability to adjust for disc wear and provides equal disengagement for discs. The Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.
| Feel | Light pedal effort, smooth engagement, OE to mild gear rattle |
|---|---|
| Life | Disc surfaces doubled for better wear, heat capacity and longer life, further extended by ACT's exclusive diaphragm design |
| Quality | Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade |
| Recommended Use | Recommended for high horsepower street or race use |
| ACT Difference | 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
