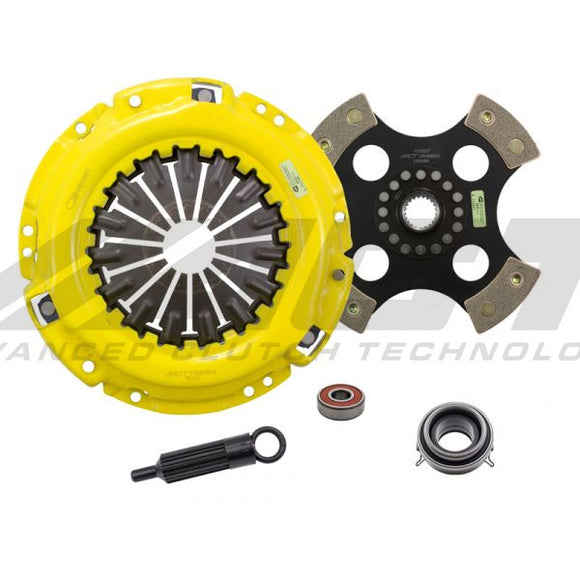

T43-XTR4
| Item Description | XT-O/Race Rigid 4 Pad |
|---|---|
| Product Weight (lbs.) | 15.4 |
| Torque Capacity (ft/lbs.) | 450 |
| Torque Capacity Over OE | 107% |
| Disc Material | Ceramic |
| Clutch Disc Diameter (Inches) | 9.3 |
| Clutch Disc Diameter (Millimeters) | 236 |
| Input Shaft Diameter (inches) | 1.125 |
| Pressure Plate Type | Xtreme |
| Warranty | 12 Months (view details) |
Description
T43-XTR4 kit features ACT's highly regarded Heavy Duty pressure plate and rigid 4 pad race disc delivering ultra-high torque capacity, aggressive engagement and increased toughness to withstand the demands of off-road racing. ACT’s exclusive diaphragm design dramatically increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT’s rigid center 4 pad race discs have a virtually indestructible rigid center and premium ceramic friction materials to hold power even under the most abusive conditions. Rigid design eliminates torsional damping for simplicity, reduced weight and quicker shifting.
| Feel | Moderate to heavy pedal effort, aggressive engagement, increased gear rattle, confidence during hard shifts |
|---|---|
| Life | Moderate friction life, extended by ACT's exclusive diaphragm design, increased durability and heat capacity, rigid design may increase spline wear |
| Quality | Carefully engineered, precisely assembled, accurately balanced, uses premium ceramic friction materials for high heat tolerance and maximum performance, premium bearings and hardware |
| Recommended Use | Recommended for high torque race use |
| ACT Difference | 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, key areas induction hardened for longer life. |
