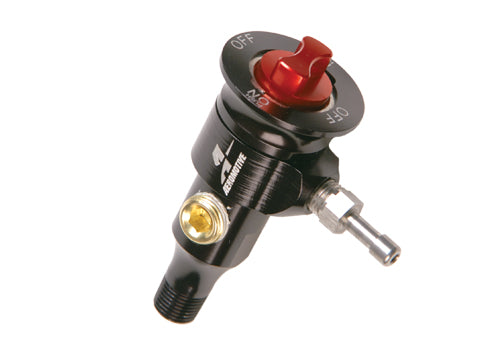

Aeromotive Billet Fuel Sample Valve

15631

P/N 15631: Billet Fuel Sample Valve

Aeromotive’s Billet Fuel Sample Valve is designed to simplify installation and make fuel checks a snap! Packed with common sense features, it’s simply the best sample valve on the market.

• Installs into any 1/8′ NPT gauge port.
• Provides a duplicate 1/8′ NPT port on the valve for installation of fuel pressure gauge or pressure sensor transducer.
• Sample port is equipped with stainless steel barb fitting for extension hose and rotates 360° for ease of installation and sampling.
• The ‘dual action’, spring loaded safety valve keeps the valve sealed when
  unlocked and rotates into a locked position for racing.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
• When a fuel sample is required, rotate to the unlocked position, press for fuel sample and release, re-lock the valve and go race.Available as a 3/8” Quick Connect Sample Valve Kit, P/N 17119
  Fits most Ford Modular and GM LS Series EnginesView Installation Instructions
