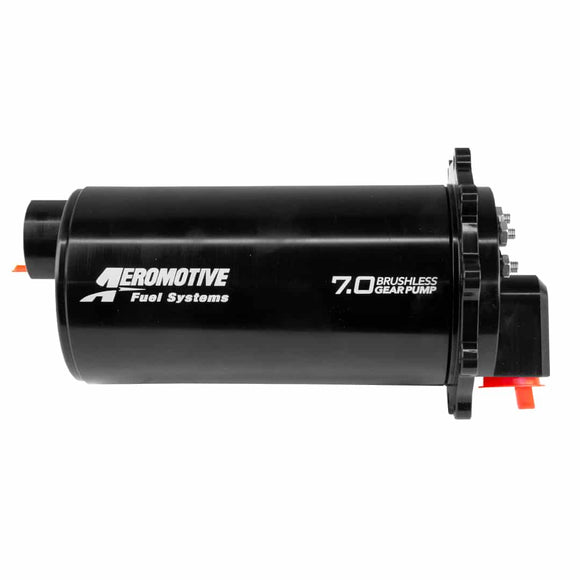

Aeromotive Fuel Pump Module TVS 90-Deg Outlet Brushless Spur 7.0

18069

P/N 18069: Fuel Pump Module, TVS, 90-Deg Outlet, Brushless Spur 7.0
Ground Shaking Performance – Advanced Technology

• Supports

Fuel-injected engines:
– up to 4,800 FWHP on GAS – naturally-aspirated
– up to 3,400 FWHP on GAS – forced air induction

– up to 3,360 FWHP on E85 – naturally-aspirated
– up to 2,380 FWHP on E85 – forced air induction

– up to 1,680 FWHP on METHANOL – naturally-aspirated
– up to 1,190 FWHP on METHANOL – forced air induction

Carbureted Engines:
– up to 5,400 FWHP on GAS – naturally-aspirated
– up to 3,800 FWHP on GAS – forced air induction

– up to 3,780 FWHP on E85 – naturally-aspirated
– up to 2,400 FWHP on E85 – forced air induction

– up to 1,890 FWHP on METHANOL – naturally-aspirated
– up to 1,200 FWHP on METHANOL – forced air induction

• E85 Compatible, reduce max FWHP by 30%
• Lighter than the traditional external mount pumps.
• Reduced current draw at higher, EFI pressures.
• Extended service life in methanol and ethanol.
• New integral spur-gear pumping mechanism.
• 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
• Integral, external brushless controller for a clean installation, cooler fuel, and enhanced reliability.
• ORB-12 inlet and ORB-10 outlet ports.
• Requires straight 12-VDC to the 16-VDC power supply.
• Not compatible with pulse-modulated systems or fuel pump speed controllers.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
