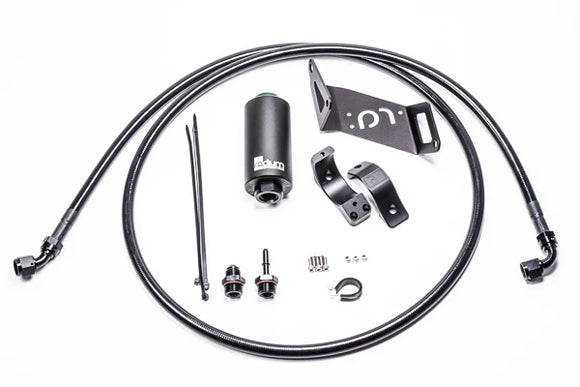

Radium Engineering BMW Fuel Hanger Feed w/ Microglass Filter

• BMW E90 3-series (N54 or N55)
• BMW E91 3-series (N54 or N55)
• BMW E92 3-series (N54 or N55)
• BMW E93 3-series (N54 or N55)

1. This system is also compatible with the E90/91/92/93 M3 fuel tank. However, because the M3 uses a brushless fuel pump, the installer must devise a solution for triggering the new surge tank fuel pump(s). This is not covered in the installation instructions.
   2. This system is NOT compatible with BMW 1-series vehicles (E81/E82/E86/E87).

NOTE: Because of the exhaust system, these fuel feed kits are NOT compatible with the M3.

An 8AN PTFE fuel feed line secures to the FHST outlet, as shown below. The fuel line clears the OEM fuel pump cover and all suspension related parts. No cutting or drilling is required. The PTFE hose is routed underneath the vehicle and sent to a Radium Engineering fuel filter secured to the body using OEM hardware. From there, a SAE quick connect fitting is provided to reattach the OEM N54/N55 fuel line.
