AMS Performance R8/Huracan DL800 Transmission Titanium Hardware Kit

ALP.37.03.0003-1

With 20 years of documented research and development in the forced induction field, AMS Performance has proven itself as the powerhouse in the automotive aftermarket. Our award winning performance systems are what all others are measured by. Be the Alpha.

DESCRIPTION

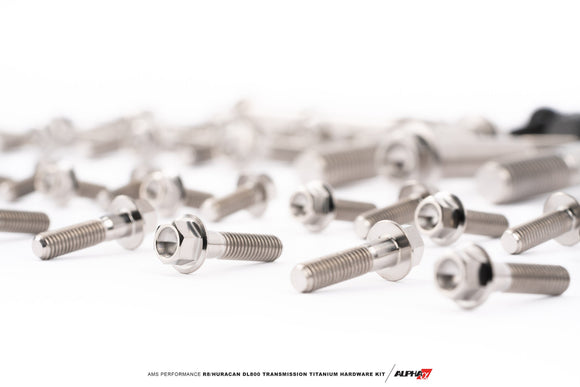

The AMS Performance R8/Huracan DL800 Transmission Titanium Hardware Kit has been developed as a reusable solution to the stretch-prone OEM aluminum hardware found in the Audi R8 and Lamborghini Huracan. Over time, the factory bolts can stretch and loosen, causing oil to leak out of your transmission. Not only is this a problem for your garage floor, but it can lead to transmission damage if repair is neglected. Made from lightweight 6Al-4V titanium and 4130 steel, this hardware kit is completely reusable unlike the the OEM aluminum bolts that require replacement once removed.

• Aerospace-grade 6Al-4V (Grade 5) Titanium and 4130 Chromoly Steel Material
• Most Complete Bolt Kit on the Market
• Lightweight and High Tensile Strength
• Fixes Leaky Transmission Cases
• Capable of Being Reused Unlike OEM Torque-to-Yield Aluminum Bolts
• Direct Install Hardware – Completely Reversible

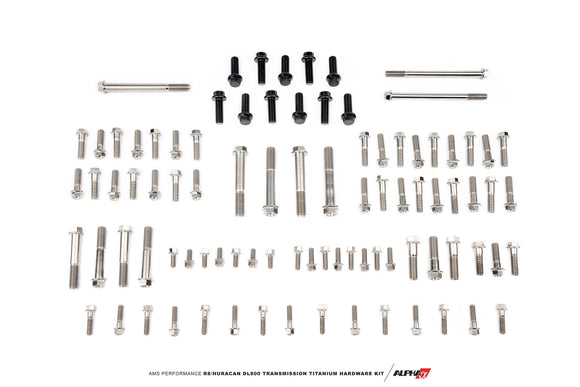

Transmission Hardware Kit Includes

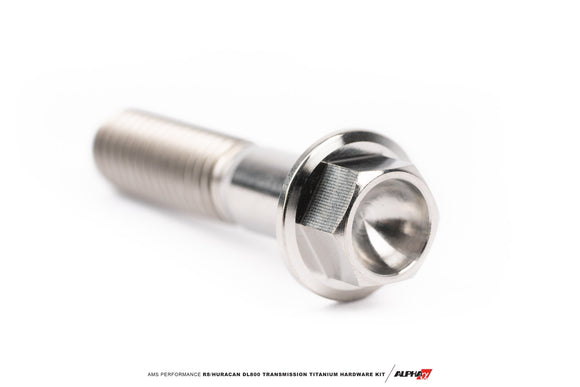

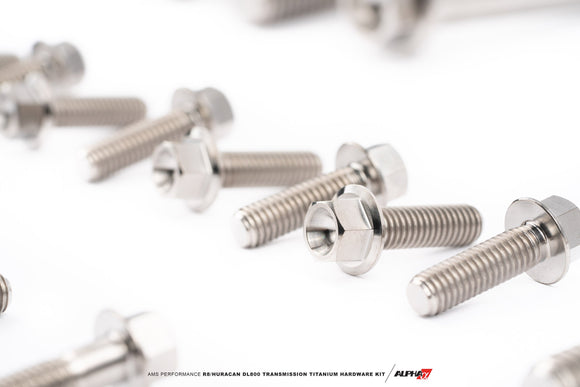

• 6Al-4V Titanium Transmission to Engine Bolts
• 6Al-4V Titanium Oil Pan/Sump Bolts
• 6Al-4V Titanium Mechatronic Cover Bolts
• 6Al-4V Titanium Basket Mounting Bolts
• 6Al-4V Titanium End Plate Bolts
• 6Al-4V Titanium Half Shaft Mounting Bolts
• 6Al-4V Titanium External Mid Plate Bolts
• 6Al-4V Titanium Internal Mid Plate Bolts

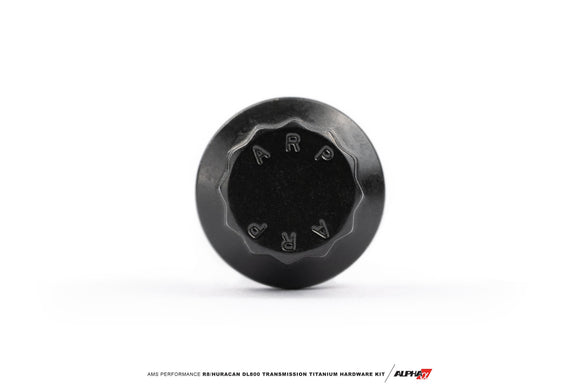

• ARP 4130 Chromoly Steel Differential Cover Bolts

Applications

• 2014-Current Audi R8 w/ S-Tronic (Incl. Plus & Performance models)
• 2015-Current Lamborghini Huracan (Incl. Performante & Evo models)

Product Notes

• All but two bolts can be installed without removing the transmission from the chassis. These two internal mid plate bolts require transmission case disassembly to install, so it is recommended that these bolts are only utilized during a transmission build or repair service.
