Antigravity 16V 5A Lithium Battery Charger (For AG-VTX-20/AG-H6-30-16)

Antigravity 16V 5A Lithium Battery Charger (For AG-VTX-20/AG-H6-30-16)

$125.99 CAD

Antigravity Batteries SKU: AG-BC-16V

<p>Earn [points_amount] when you buy this item.</p>
Description Availability

AG-BC-16V

This is a solid, reliable 16-Volt Charger for any Antigravity Lithium 16V Battery such as our VTX20 motorsports battery and our new H6-30-16 race car/truck battery. Works with other brands of 16-Volt Lifepo4 vehicle batteries as well.

Note: Never use a 16v Charger on a 12v Battery, nor a 12v Charger on a 16v Battery. Use this charger ONLY with 16v Lifepo4 Lithium Motorsports Batteries.

  • 16-Volt Lithium Motorsports Battery Charger
  • Fast 5-Amp charge rate
  • Multiple protections
  • Comes with attached Clamps

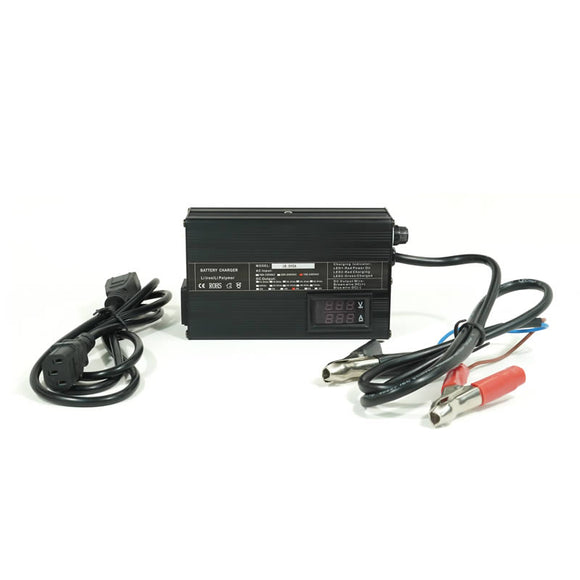

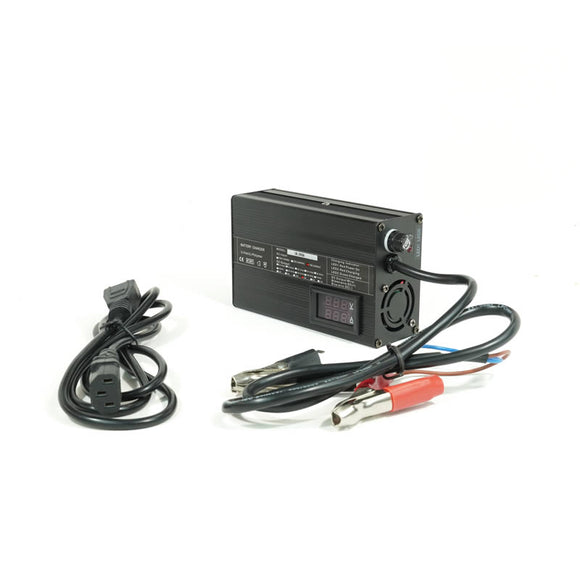

AG-BC-16V Lithium Battery Charger

The Antigravity 16-Volt Charger works with 110 or 220 voltage. Foreign countries just need an adapter for the plug.

This 16-Volt Charger works with any 16V Antigravity Battery, and should ONLY be used with 16V Batteries. With a 5-amp charge rate it offers a fast charge and is a solid, reliable unit for maintaining 16-Volt Lifepo4 batteries.

Features

  • Advanced high frequency switching mode power supply technology.
  • DC output isolated from AC input.
  • Single Input ll0Vac and 230Vac or Universal Input 110/230Vac, 50Hz-60Hz.
  • Charging parameters are insensitive to the AC input line voltage variations.
  • Completely automatic battery charging: CC, CV.
  • Two LEDs: LED1 indicates Power On or Off. LED2 indicates Charging/Charged.
  • LED SCREEN indicates charging Voltage and Current.
  • Short-circuit, over-voltage, over-temperature, reverse-polarity protections.
  • Efficiency > 85%.
  • Forced ventilation with fans.
  • 100% full load burn-in test.

Operation

  1. Connect the Charger to the Wall Outlet/Power Supply.
  2. Connect the Charger to the Battery making sure Polarity is correctly connected to the Battery.
    Red Clamps to Positive (+) Battery Connection
    Black Clamps to Negative (-) Battery Connection
  3. LED1: indicates the Charger is plugged in. RED LED confirms the AC power is on.
  4. LED2: Green confirms the Charger is connected. FLASHES Red/Green when charging.
  5. LED2: will show GREEN SOLID LED when the battery is fully charged.
