Air Strut Front Left 03-12 Land Rover Range Rover (L322) - w/o VDS/CVD AS-3089 Air Strut Front 06-11 Mercedes-Benz ML-Class (W164) - w/AIRMATIC & ADS, AMG

Air Strut Front Left 03-12 Land Rover Range Rover (L322) - w/o VDS/CVD AS-3089 Air Strut Front 06-11 Mercedes-Benz ML-Class (W164) - w/AIRMATIC & ADS, AMG

$909.60 CAD

Shipping calculated at checkout

Arnott SKU: AS-2962

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

AS-2962

Suspension Strut Assembly

New Air Suspension Strut

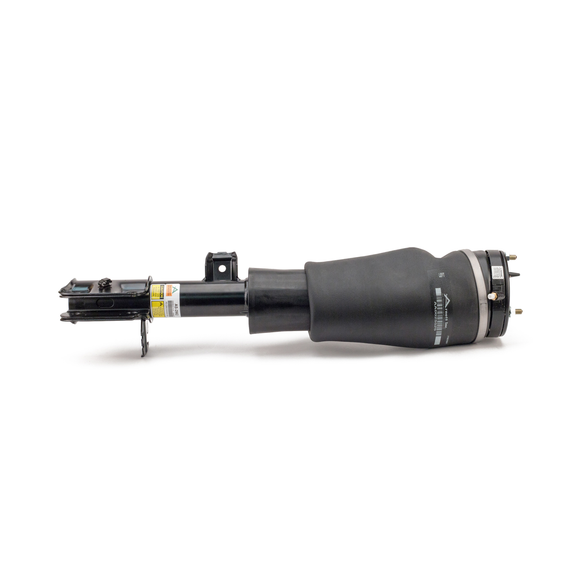

AS-2962 is an Arnott designed new left front strut for the 2003-2012 L322, MK-III, Vogue Range Rover and is not remanufactured. Arnotts exclusive design features a new custom-made and tuned shock absorber valved for a smooth yet responsive ride. These new struts are assembled in the USA with a multi-ply air spring bladder manufactured by Vibracoustic. The strut assembly also features extra-heavy duty crimping rings, new seals, air fitting and check valve along with a stamped steel top.

  • Vibracoustic Multi-Ply Air Bladder
  • Black Anodized Steel Top
  • Heavy-Duty Crimping Rings
  • Replace in Pairs
Adjustable Compression: No
Adjustable Damping: No
Air Adjustable: Yes
Air Ride Suspension: Yes
Bearing Plate Included: Yes
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: N/A
Gas Charged: Yes
Internal Damper Type: Hydraulic
Lower Mount Type: Bracket
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: New
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Land Rover Range Rover 2003-2012

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
45-240713 Land Rover
LR032570 Land Rover
RNB000070 Land Rover
RNB000750 Land Rover
RNB500550 Land Rover
RNB501350 Land Rover
RNB501410 Land Rover
RNB501530 Land Rover
