Air Strut Front 07-12 Mercedes-Benz GL-Class (X164) - w/AIRMATIC, w/o ADS AS-3155 Air Strut Front Right 13-19 Mercedes-Benz GL/GLS-Class (X166) - w/o ADS (Excl. ADS+)

Air Strut Front 07-12 Mercedes-Benz GL-Class (X164) - w/AIRMATIC, w/o ADS AS-3155 Air Strut Front Right 13-19 Mercedes-Benz GL/GLS-Class (X166) - w/o ADS (Excl. ADS+)

$657.60 CAD

Shipping calculated at checkout

Arnott SKU: AS-3005

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

AS-3005

Suspension Strut Assembly

New Air Suspension Strut

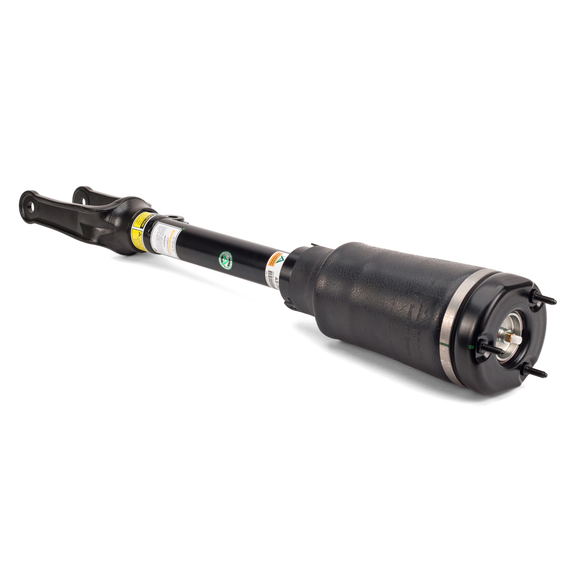

AS-3005 is a new, Arnott-engineered, aftermarket air suspension strut for the front of the 2007-2012 Mercedes-Benz GL-Class (excluding GL550) SUV w/AIRMATIC and W/O ADS (Active Damping System). This new assembly replaces your worn O.E. strut and features a new custom-tuned shock absorber calibrated to provide an excellent ride and outstanding performance. The Arnott strut includes a new multi-ply air bladder from ContiTech along with a steel top mount. This new air strut is assembled in the USA with Arnotts long-lasting seals, new O-rings, bump stop, heavy-duty crimping rings and 4mm air fitting.

  • Multi-Ply ContiTech Air Spring Bladder
  • Pre-Assembled for Easy Installation
  • Detailed Installation Manual Available
  • Designed & Assembled in the USA
  • Replace in Pairs
Adjustable Compression: No
Adjustable Damping: No
Air Adjustable: Yes
Air Ride Suspension: Yes
Bearing Plate Included: No
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Coil Over Springs Included: N/A
Gas Charged: Yes
Internal Damper Type: Hydraulic
Lower Mount Type: Clevis
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: New
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Mercedes-Benz GL320 2007-2009
Mercedes-Benz GL350 2010-2012
Mercedes-Benz GL450 2007-2012
Mercedes-Benz GL500 2008-2012
Mercedes-Benz GL550 2008-2012
Mercedes-Benz ML450 2010-2011

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
1643204513 Mercedes-Benz
164320451380 Mercedes-Benz
1643206113 Mercedes-Benz
164320611339 Mercedes-Benz
164320611380 Mercedes-Benz
