Air Strut Front 07-12 Mercedes-Benz GL-Class (X164), 06-11 ML-Class (W164) - w/AIRMATIC, w/o ADS, Excl. AMG AS-3166 Air Strut Rear Right 11-18 Porsche Cayenne (92A)

Air Strut Front 07-12 Mercedes-Benz GL-Class (X164), 06-11 ML-Class (W164) - w/AIRMATIC, w/o ADS, Excl. AMG AS-3166 Air Strut Rear Right 11-18 Porsche Cayenne (92A)

$720.00 CAD

Shipping calculated at checkout

Arnott SKU: AS-3058

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

AS-3058

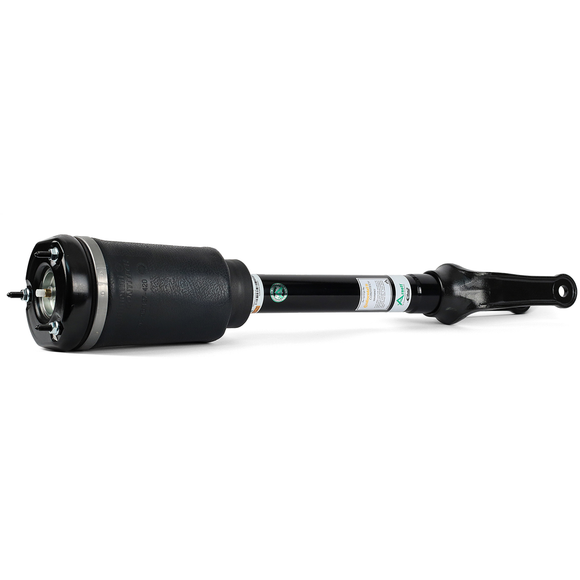

New Air Suspension Strut

AS-3058 is a premium, Arnott engineered, aftermarket air suspension strut for the Front Left or Right side of the 2007-2012 Mercedes-Benz GL-Class and 2006-2011 ML-Class SUVs with AIRMATIC and without ADS, excluding AMG models. This new assembly features a passive Eibach monotube damper custom tuned to provide OE like ride comfort and handling. The Arnott strut is built with Tier 1 components including a cross-axis, multi-ply ContiTech air sleeve, steel top mount and clevis, O-rings, polyurethane bump stop, heavy-duty crimping rings, new 4 MM airline fitting and check valve. The aftermarket Mercedes-Benz replacement front strut is designed and assembled in the USA.

  • Custom-designed Eibach shock absorber
  • Universal Strut Fits Left or Right Side
  • ContiTech Multi-Ply Air Sleeve
  • Heavy-Duty Crimping Rings
  • Detailed Installation Manual Available
  • Replace in Pairs
Adjustable Compression: No
Air Adjustable: Yes
Air Ride Suspension: Yes
Bearing Plate Included: Yes
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: N/A
Boot Included: No
Coil Over Springs Included: N/A
Internal Damper Type: Hydraulic
Lower Mount Type: Clevis
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: New
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Mercedes-Benz GL320 2007-2009
Mercedes-Benz GL350 2010-2012
Mercedes-Benz GL450 2007-2012
Mercedes-Benz GL500 2008-2012
Mercedes-Benz GL550 2008-2012
Mercedes-Benz ML450 2010-2011

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
1643204513 Mercedes-Benz
164320451380 Mercedes-Benz
1643206113 Mercedes-Benz
164320611339 Mercedes-Benz
164320611380 Mercedes-Benz
