Arnott SKU: AS-3066

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

AS-3066

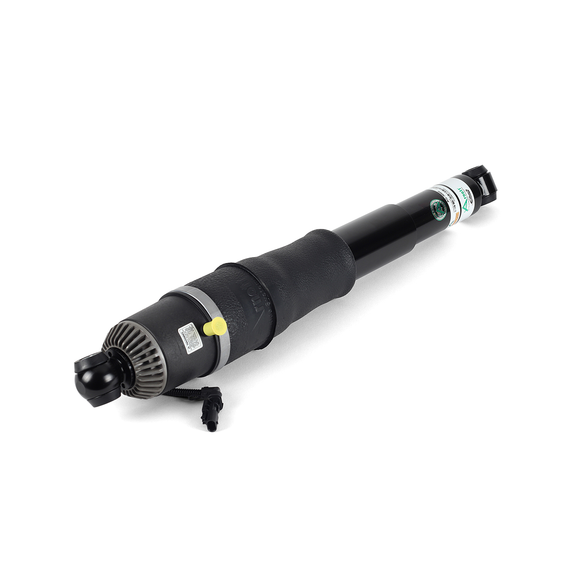

New Air Suspension Shock

Arnotts rear air shock AS-3066 for 2015-2020 GM® trucks and SUVs (K2XX Chassis) equipped with MagneRide® is the ideal replacement for your failing rear air assisted shock. This Arnott air shock, which was engineered in the USA, includes a passive damper which has been custom tuned to deliver control, stability, and comfort. Arnotts new aftermarket rear monotube shock bypasses the vehicles auto-damping system and incorporates a sensor which eliminates dash panel error messages.

  • Converts adaptive to passive
  • Improved ride & handling
  • Goodyear air spring
  • Engineered in the USA
  • Eibach shock
  • Replace in Pairs
Adjustable: No
Air Adjustable: Yes
Air Bladder: Yes
Air Bladder Material: Rubber
Air Ride Suspension: Yes
Bearing Plate Included: No
Body End Measuring Point: Center Eye
Boot Color: N/A
Coil Over Springs Included: N/A
Compressed Length: 374.3 (mm)
Dust Shield Material: N/A
Extended Length: 558 (mm)
Grade Type: Standard
Heavy Duty Crimping Rings: Yes
Internal Construction Type: Monotube
Internal Damper Type: Hydraulic
Lower Mount Type: Loop/Eyelet
Mounting Hardware Included: Yes
Progressive Spring Rate: Progressive
Protective Aluminum Can: No
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: Yes
Travel Length: 184 (mm)
Upper Mount Type: Loop/Eyelet
Upper Mounting Isolator Included: Yes
Make Model Year
Cadillac Escalade 2015-2020
Cadillac Escalade ESV 2015-2020
Chevrolet Suburban 2015-2020
Chevrolet Tahoe 2015-2020
GMC Yukon 2015-2020
GMC Yukon XL 2015-2020

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
23151122 General Motors
23267007 General Motors
23290661 General Motors
84176675 General Motors
