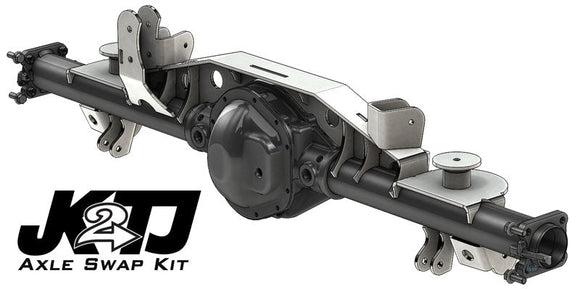

Artec Industries 93-06 Jeep Wrangler TJ Lj Jk2Tj Rear Swap Kit With Truss

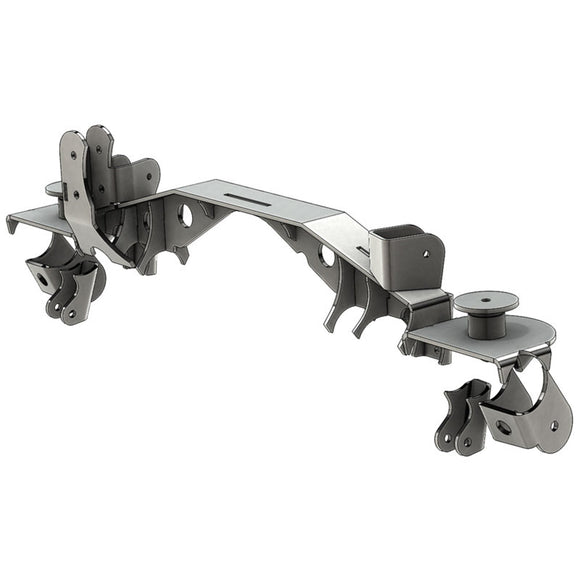

The Artec Industries Truss system represents the next evolution of Axle trusses from Artec Industries, combining affordability, durability, lightness, and ease of installation to provide unparalleled protection for your Axle. Its innovative peaked top design offers greater rigidity, lower weight, and no long weld seams, streamlining the installation process. The Apex swap kit features multiple enhancements, including improved weldability, less welding distortion, optimized shock bracket locations, and lower & upper control arm mounts, all suggested by our network of trusted dealers and installers. This robust truss and bracket system accommodates the factory link, spring, anti-sway bar, and shock locations while withstanding extreme wear and tear. The 3/16” thick steel truss allows easy alignment of the link mounts, saving you time and hassle during the installation.

• In-house se CNC laser cut from ¼" and 3/16” mild steel
• Lightweight and robust
• Hassle-free installation: Reinforced truss – simply drop it in place and start welding
• 3D models from Dana Corp and vehicle OEM for perfect fit and clearance.
• 70% less welding needed than previous designs for less warping, faster turnaround, lower costs
• Dimpled holes provide light weight and rigidity
• Contours to the differential
• The truss provides complete end-to-end rigidity
• Coil bracket and bump stop pads are an extension of the Axle truss
• The main truss provides fixture points for all suspension brackets for easy installation

Notes : The JK D44axle has a different 5 lug bolt pattern than the factory axle so new wheels will be needed. It is also a wider axle so prepare for the WMS to be wider than your factory axles. Only to be used with our JK2TJ Front Axle Swap Kit.

Notes : This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.
