TR0004

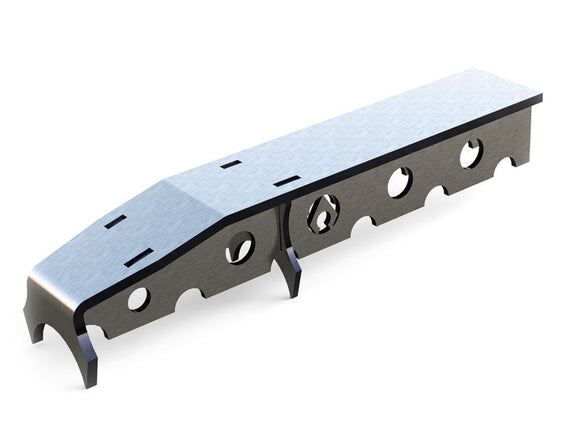

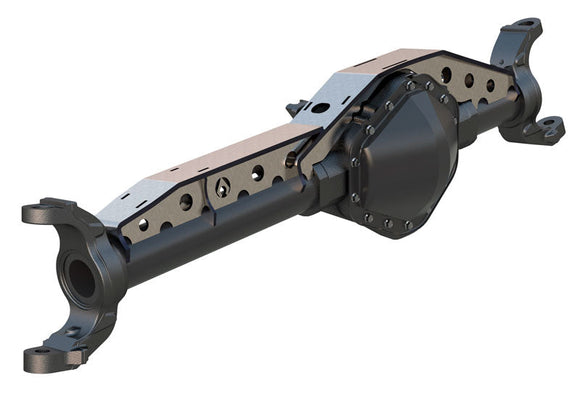

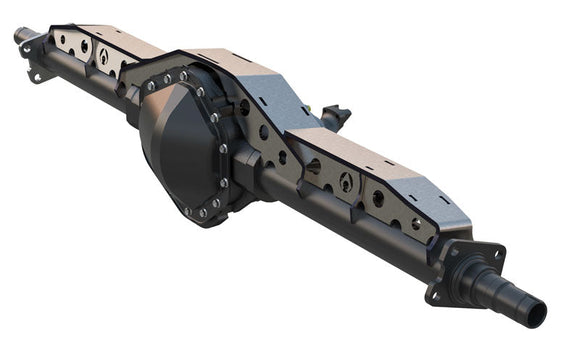

Artec Industries' NEW Modular Truss Ends complement Modular and Short Trusses for full-width trusses. Features a Low Profile design, strengthening axle with 3/8" thick truss top and 1/4" thick gussets. Provides link mounting surface or bumpstop pad. Can use long Modular Truss End with a 14 bolt short truss to make a 14 bolt front axle. Overall length is 20.73".
- 3/8" mild steel truss top and 1/4" mild steel gussets for strength and precision fitment
- Compatible with Artec Modular and Short Trusses and other short style trusses
- 3.5" axle tube diameter for compatibility with most axles
- Allows for customization of truss system to fit specific needs
- Provides a lower profile than standard rear trusses for clearance and bumpstop pad
- Reinforced with interlocked 1/4" gussets for maximum strength and easy assembly
- Overall low profile design results in a stronger, sleeker axle that fits easily into any vehicle without interference.
- Made in the USA
Notes :This truss end is flat on the end and not contoured to any truss. THIS REQUIRES TRIMMING TO FIT. This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.
