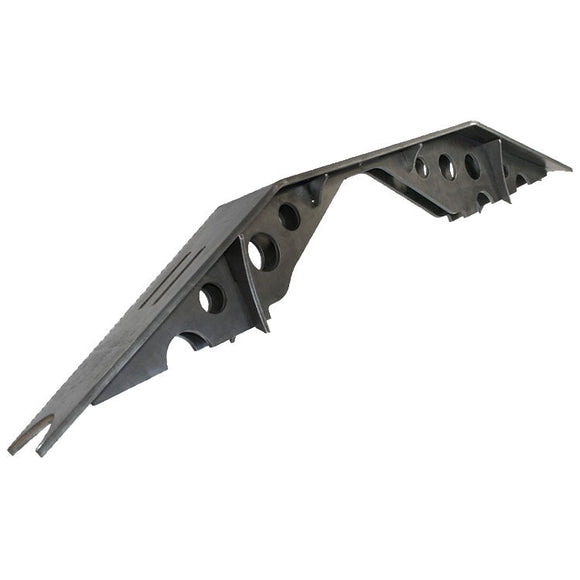

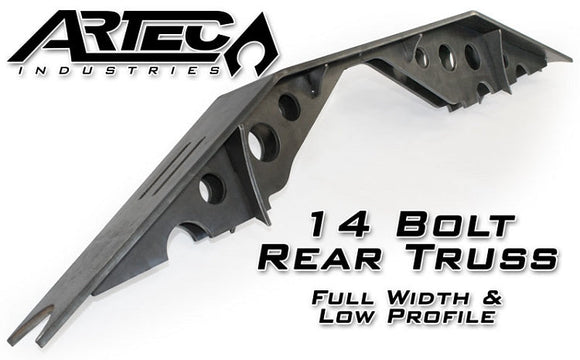

Artec Industries 1970-2010 Chevrolet K30 K20 14 Bolt Rear Truss Single Rear Wheel (Srw)

Introducing Artec Industries' NEW 14 Bolt Rear Axle Truss - the ultimate solution for reinforcing your axle and providing a flat surface for upper link mounting. Our heavy-duty truss system is built to withstand serious abuse, featuring a 3/8" thick truss top and 1/4" thick gussets. The unique design strengthens both the axle and link mounting surface, ensuring a durable and reliable upgrade. Measuring just under 51 1/4" in total length, it's the perfect addition to your vehicle.

• 3/8" thick steel truss top, 1/4" steel ram mount and gussets: CNC cut and bent for perfect fitment
• Low profile design: optimal link joint mounting geometry, 8" from axle centerline
• Full axle length span: comprehensive axle tube reinforcement
• Reinforced with interlocked 1/4" thick gussets: maximum strength, easy assembly
• Streamlined low profile: stronger, sleeker axle, easy vehicle integration, minimized component interference
• Made in the USA

Notes : Not for use with 14 bolt VAN axles which are offset differently than Truck axles.

Notes : This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.
