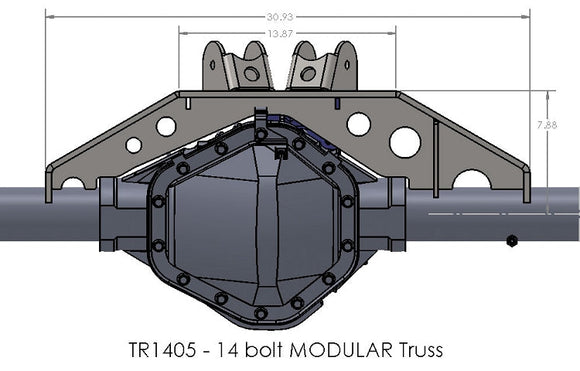

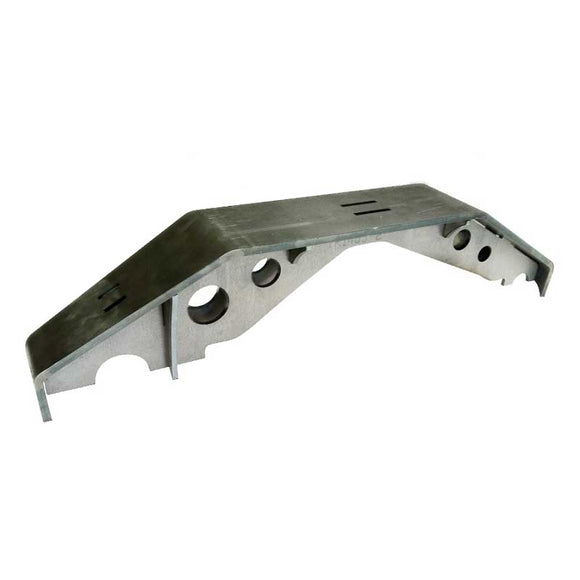

Artec Industries 1970-2010 Chevrolet K30 K20 14 Bolt Modular Truss

Artec Industries' 14 Bolt Modular Axle Truss: the ultimate versatile truss for one-ton TJ/YJ swaps. Heavy-duty design, add-on perches, high clearance shock mounts, and optional Pinion Guard with bridge.

• 3/8" thick steel truss top, 1/4" steel gussets: CNC cut and bent for perfect fitment
• Low profile design: optimal link joint mounting geometry, 8" from axle centerline
• Modular truss: compatible with factory leaf spring perches or add-on coil/leaf spring perches
• Flexible design: easy transition from leaf spring to coil spring, no full truss removal needed
• Reinforced with interlocked 1/4" thick gussets: maximum strength, easy assembly
• Made in the USA

Notes : Leaf spring option is for standard YJ width but is for spring over axle (SOA), not spring under (SUA). The kit does not include u-bolts. Coil spring option is for stock REAR TJ coils (the wider ones) not TJ front coils. Other spring options will be available soon.
