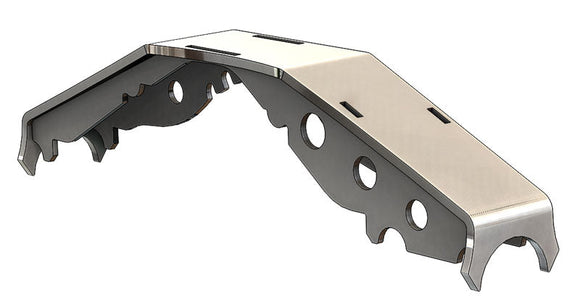

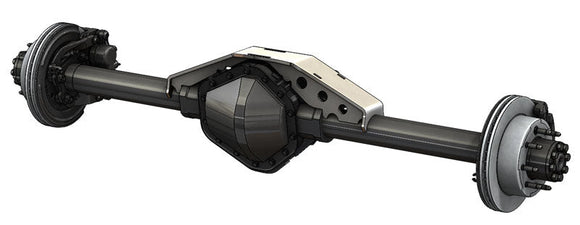

Artec Industries 1970-2010 Chevrolet K30 K20 14 Bolt Rear Short Truss

Introducing Artec Industries' NEW 14 Bolt Rear Short Truss, designed for heavy-duty axle reinforcement and optimal mounting of upper links. With a 3/8" thick truss top and 1/4" thick gussets, this truss boasts a unique design that strengthens both the axle and link mounting surface. Tested in our JK swap kit for years, it's now available individually. Accommodates pinion angles from 7 to 20 degrees, and fits most Chevy/GMC truck 14 bolt axles (27.29" in length).

• 3/8" thick truss top, 1/4" mild steel gussets: CNC cut and bent for precise fitment
• Low profile design: ideal link joint mounting at 9" from axle centerline
• Versatile: fits between leaf springs or as a base for link suspension mounts
• Reinforced with interlocked 1/4" thick gussets for maximum strength and easy assembly
• Enhances axle strength, sleekness, and compatibility without interfering with vehicle components
• Made in the USA

Notes : This truss is very form fitting to the contours of the casting. Due to variances in casting of this axle over the years, some trimming may be necessary on the truss and non-essential parts of the casting.

Notes : This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.
