Wagner Tuning Audi TTRS EVO2 Competition Intercooler

200001024

Installation Instruction Intercooler Kit TTRS 8J EVO2   (840.09 KB)

THIS ITEM CAN ONLY BE USED IN A COMPETITION RACING VEHICLE THAT IS NOT DRIVEN ON PUBLIC ROADS, UNDER CALIFORNIA STATE LAW IT IS NOT LEGAL FOR USE IN ANY OTHER MOTOR VEHICLE!

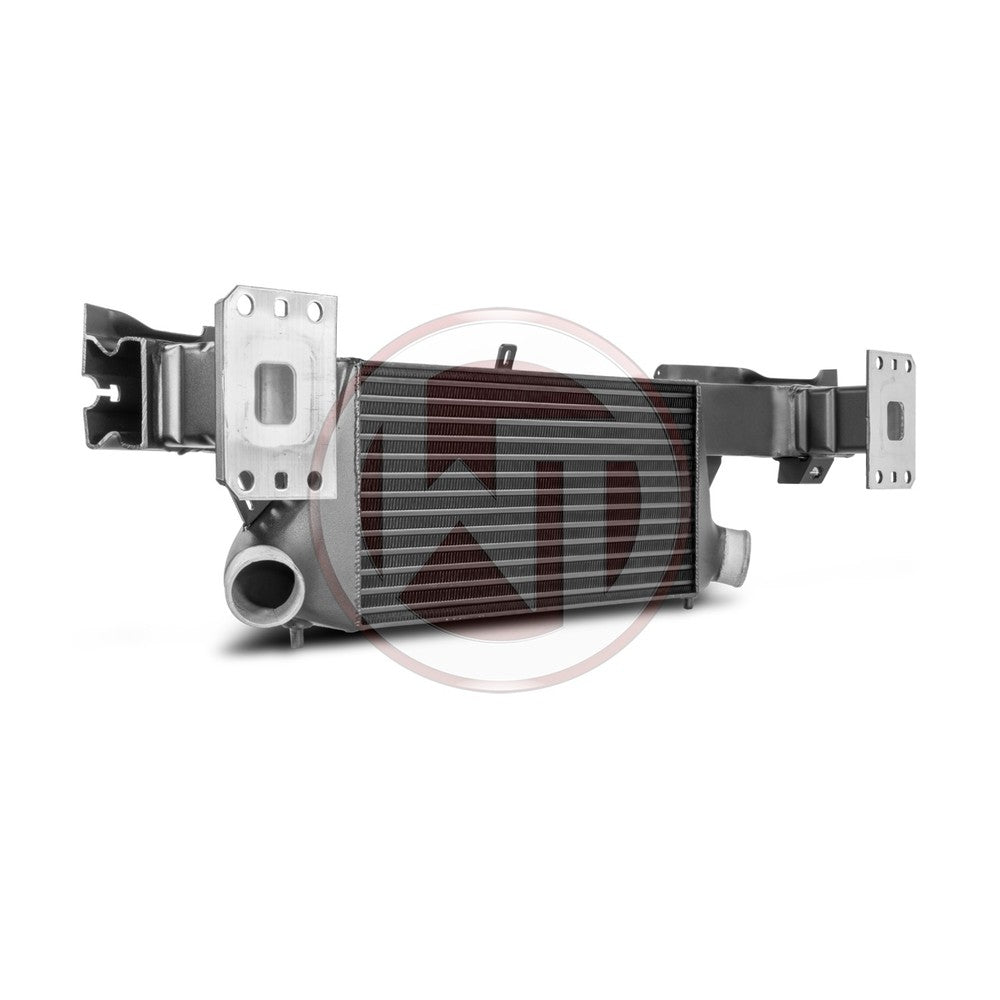

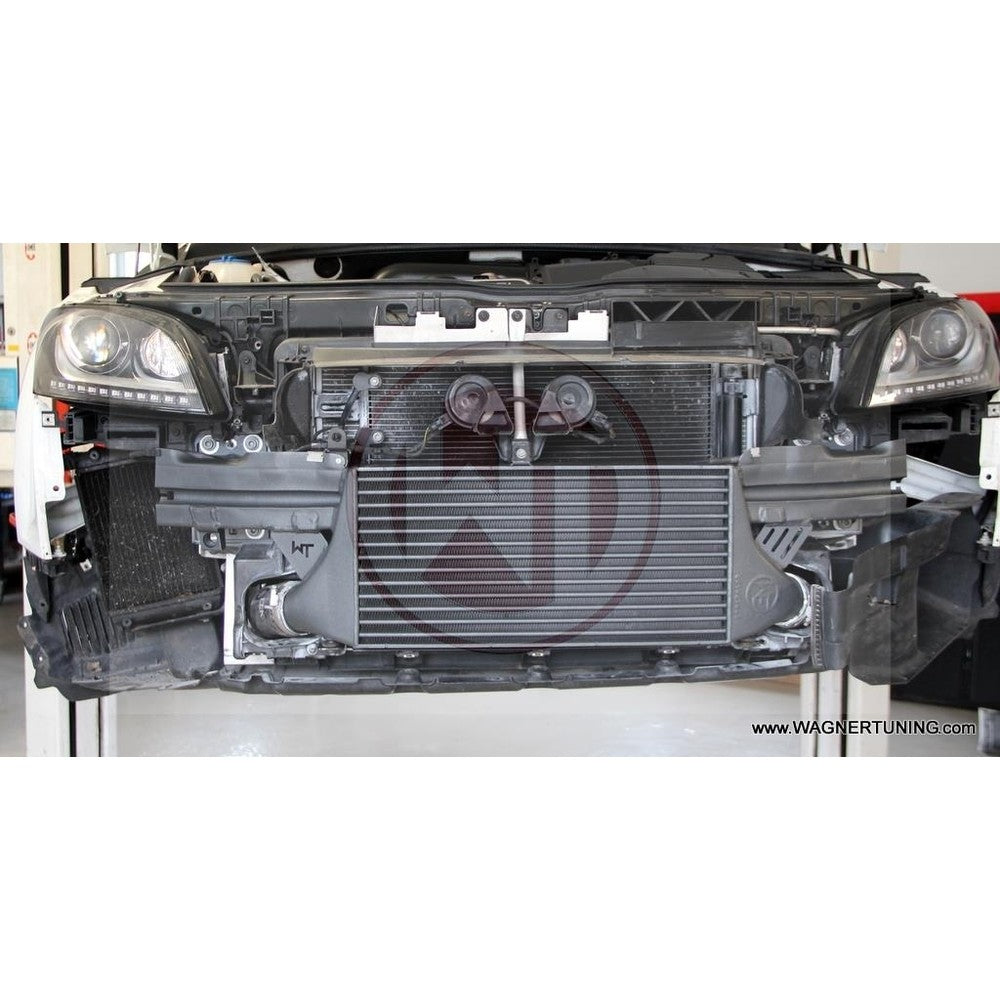

The WAGNERTUNING intercooler EVO 2 TTRS 8J is made for Audi TT RS and includes an integrated crossmember.
Our engineers have increased the intercooler core size and efficiency, as well as improved the endtank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties.
Constructed of the highest quality Tube Fin intercooler cores combined with cast aluminum and then CNC end tanks for reliable high performance air to air charge cooling.

The WAGNERTUNING Audi TT RS Upgrade Intercooler features:

EVO II: 535mm x 260mm x 95mm 13,214 cm³ intercooler core compared to
EVO I: 535mm x 160mm x 110mm 9.416 cm³ core and
OEM: 535mm x 160mm x 80mm 6,848cm³ core
CAD / FEM optimized cast aluminum end tanks
OEM mounting points
