Remanufactured Air Strut Front 07-12 Mercedes-Benz GL-Class (X164), 06-11 ML-Class (W164) - w/AIRMATIC & ADS, Incl. 4MATIC, Excl. AMG AS-2778 Air Strut Front Left 04-10 Audi A8 (D3), 07-10 S8 (D3) - w/Sport Suspension

Remanufactured Air Strut Front 07-12 Mercedes-Benz GL-Class (X164), 06-11 ML-Class (W164) - w/AIRMATIC & ADS, Incl. 4MATIC, Excl. AMG AS-2778 Air Strut Front Left 04-10 Audi A8 (D3), 07-10 S8 (D3) - w/Sport Suspension

$872.40 CAD

Shipping calculated at checkout

Arnott SKU: AS-2450

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>
Description Availability

AS-2450

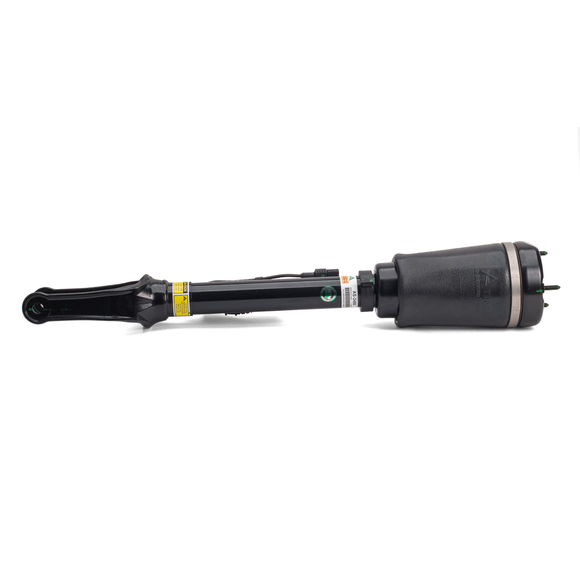

Remanufactured Air Suspension Strut

Arnotts completely rebuilt OE front air struts for Mercedes-Benz vehicles w/ ADS feature a new rubber air spring bladder manufactured by Continental ContiTech. The price per strut at your local dealership is a small fortune! Once again, the Arnott design is not only more efficient, its also much more affordable!

  • Remanufactured and Tested in the USA
  • Reuses Damping Valve for OE Ride Control
  • Pre-assembled for Easy Installation
  • Replace in Pairs
Adjustable Compression: No
Adjustable Damping: Yes
Air Adjustable: Yes
Air Ride Suspension: Yes
Bearing Plate Included: No
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: N/A
Gas Charged: Yes
Internal Damper Type: Hydraulic
Lower Mount Type: Clevis
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: Remanufactured
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Mercedes-Benz GL320 2007-2009
Mercedes-Benz GL350 2010-2012
Mercedes-Benz GL450 2007-2012
Mercedes-Benz GL500 2008-2012
Mercedes-Benz GL550 2008-2012
Mercedes-Benz ML320 2007-2009
Mercedes-Benz ML350 2006-2011
Mercedes-Benz ML450 2010-2011
Mercedes-Benz ML500 2006-2011
Mercedes-Benz ML550 2008-2011

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
1643204313 Mercedes-Benz
1643204413 Mercedes-Benz
1643204613 Mercedes-Benz
1643205813 Mercedes-Benz
164320581339 Mercedes-Benz
164320581380 Mercedes-Benz
1643205913 Mercedes-Benz
164320591339 Mercedes-Benz
164320591380 Mercedes-Benz
1643206013 Mercedes-Benz
164320601339 Mercedes-Benz
164320601380 Mercedes-Benz
