Air Strut Front Right 04-10 Audi A8 (D3), 07-10 S8 (D3) - w/Sport Suspension PART # TYPE LOCATION DESCRIPTION PART # TYPE LOCATION DESCRIPTION

Air Strut Front Right 04-10 Audi A8 (D3), 07-10 S8 (D3) - w/Sport Suspension PART # TYPE LOCATION DESCRIPTION PART # TYPE LOCATION DESCRIPTION

$1,576.80 CAD

Shipping calculated at checkout

Arnott SKU: AS-2777

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>
Description Availability

AS-2777

New Air Suspension Strut

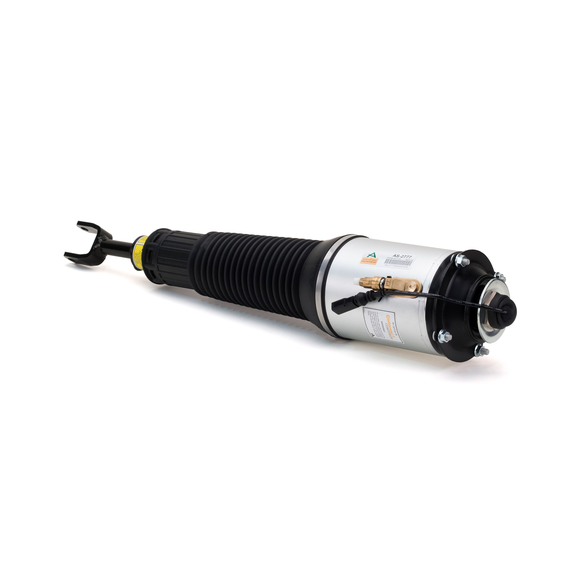

AS-2777 is a new, Arnott-engineered aftermarket air suspension strut for the front right of the 2002-2009 Audi A8 (D3 Chassis). These new assemblies replace the OE strut and feature a custom-tuned shock absorber calibrated to restore the vehicles ride and performance. Each Arnott strut includes a new air bladder from Continental ContiTech protected by an aluminum can along with a CNC-machined top mount made from aircraft-quality aluminum. These new air struts are assembled in the USA with Arnotts long-lasting seals, new O-rings, new bump stop, new heavy-duty crimping rings, new air fitting and connector valve along with a dust boot to protect the strut. This Strut is designed for vehicles with Sport Suspension. Features: New Custom-Valved Shock Absorber 2-Ply ContiTech Air Spring Bladder Pre-Assembled for Easy Installation Detailed Installation Manual Available Designed and Assembled in the USA

  • 2-Ply ContiTech Air Spring Bladder
  • Pre-Assembled for Easy Installation
  • Detailed Installation Manual Available
  • Designed & Assembled in the USA
  • Replace in Pairs
Adjustable Compression: No
Adjustable Damping: No
Air Adjustable: Yes
Air Ride Suspension: Yes
Bearing Plate Included: No
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: N/A
Gas Charged: Yes
Internal Damper Type: Hydraulic
Lower Mount Type: Clevis
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: New
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Audi A8 Quattro 2004-2010
Audi S8 2007-2010

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
4E0616040AA Audi
4E0616040AC Audi
4E0616040AE Audi
4E0616040AG Audi
4E0616040AJ Audi
4E0616040AK Audi
4E0616040S Audi
