Air Strut (Gen II) Front 01-05 Audi Allroad Quattro (C5) AS-3361 Remanufactured Air Strut Rear Left Mercedes-Benz S-Class, Maybach (W222) - w/AIRMATIC, Incl. 4MATIC, Excl. AMG

Air Strut (Gen II) Front 01-05 Audi Allroad Quattro (C5) AS-3361 Remanufactured Air Strut Rear Left Mercedes-Benz S-Class, Maybach (W222) - w/AIRMATIC, Incl. 4MATIC, Excl. AMG

$2,268.00 CAD

Shipping calculated at checkout

Arnott SKU: AS-3230

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>
Description Availability

AS-3230

New Air Suspension Strut

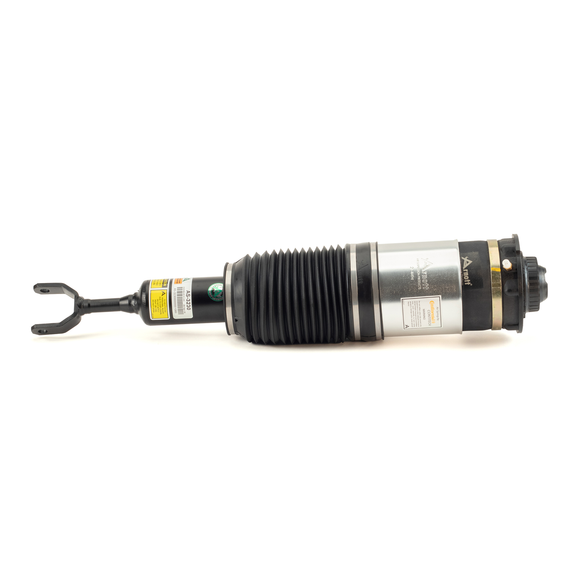

Arnotts completely assembled and ready-to-install Front Air Strut AS-3230 fits both the left and right side of the 2001-2005 Audi Allroad quattro (C5 Chassis). This complete replacement strut is assembled with a custom-valved twin-tube shock absorber and Arnotts heavy-duty Generation-II air spring featuring a multi-ply air bladder manufactured by ContiTech and an aluminum outer sleeve designed to increase the spring rate while still providing a smooth, controlled ride. Arnotts Gen-II air spring has a high-impact solid top and machined aluminum bottom mount, along with a protective dust boot to extend the life of the assembly by keeping out debris. This front air strut provides excellent control and performance, supports the vehicles auto-leveling functionality and offers a faster installation. Each front strut is fully assembled and tested in the USA to ensure the highest standard of quality. Arnott recommends replacing these struts in pairs.

  • Converts adaptive to passive
  • Protected by a Dust Boot and Aluminum Can
  • Arnott Custom-Tuned Shock
  • Pre-Assembled for Easy Installation
  • Detailed Installation Manual and Video Available
  • Replace in Pairs
Adjustable Compression: No
Air Adjustable: Yes
Air Ride Suspension: Yes
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: N/A
Internal Damper Type: Hydraulic
Lower Mount Type: Clevis
Lower Mounting Isolator Included: No
Mounting Hardware Included: No
New Or Remanufactured: New
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Threaded
Upper Mounting Isolator Included: Yes
Make Model Year
Audi Allroad Quattro 2001-2005

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
4Z7413031 Audi
4Z7413031A Audi
4Z7413032 Audi
4Z7616051 Audi
4Z7616051B Audi
4Z7616051D Audi
