06K109158ADKT2
Description
Details
- SKU:
- KIT-06K109158ADKT2
- Quality:
- Genuine
-
OE Numbers
- 06K109467K, 06H109467N, 06H109467T, 06H109509Q, 06H109509AA, 06H109469AP, 06H109469AJ, 06H109469T, 06H109469AS, 06H103144J, 06H103144F, 06H103144G, 06H103144H, 06H103144K, 06K109210, 06K109210AF, 06K109210AE, 06H103483C, N10554005, N10554001, N91130401, N91130301, N10572403
-
MFG Numbers
- TCV0158, 530.010, 703141410, JV8, 003989982010, 00004320373, 00004330546, 00004320458, 510.031, 2332, LM2332, W71945, 220150S, 861526

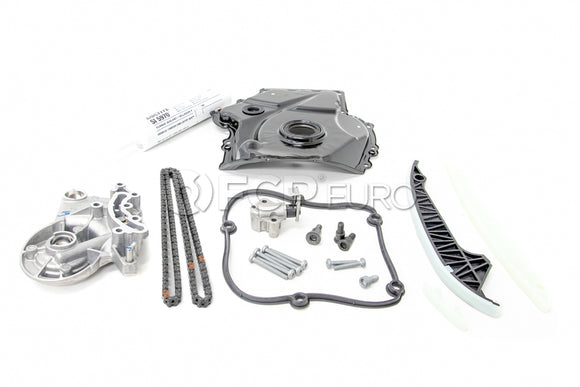

This Kit Includes
| Qty | Part | SKU | Brand |
|---|---|---|---|
| 1 | Engine Timing Chain Tensioner | VAG-06K109467K |  |
| 1 | Engine Timing Chain Guide | VAG-06H109509Q | |
| 1 | Engine Timing Chain Guide | VAG-06H109469AP | |
| 1 | Engine Timing Chain Guide | VAG-06H109469T | |
| 1 | Camshaft Bracket | VAG-06H103144K | |
| 1 | Engine Timing Cover | CRP-TCV0158 |  |
| 1 | Engine Timing Cover Gasket | VAG-06H103483C | |
| 2 | Chain Tensioner Bolt | VAG-N10554005 | |
| 2 | Engine Timing Chain Guide Bolt | VAG-N91130401 | |
| 1 | Engine Timing Chain Guide Bolt | VAG-N91130301 | |
| 1 | Seat Belt Height Adjuster Screw | VAG-N10572403 | |
| 1 | Engine Crankshaft Pulley Bolt | VAG-WHT009475 | |
| 1 | Sealant | ELR-510031 |  |
| 1 | Engine Oil | MOL-LM2332 |  |
| 1 | Engine Oil Filter | MAN-W71945 |  |
| 1 | Engine Oil Drain Plug | CTO-220150S |  |
| 1 | Engine Timing Chain | VAG-06K109158BP | |
| 1 | Engine Coolant / Antifreeze | ZER-861526 |  |
| 6 | Engine Water Pump Bolt | VAG-N10470705 | |
Product Information
This kit is designed for the infamous P0016 Cam/Crank Correlation Code.
If you are experiencing slow crank or no start we recommend you to scan the vehicle for faults first. If fault P0016 Cam/Crank Correlation fault shows its more then likely its time to replace your timing chain. We recommend you to check base timing, perform cylinder compression, and performed cylinder leak down. If you find low compression or cylinder leak we recommend you to use a bore-scope to check intake & exhaust valves for damage. If the valves are bent you will need to replace them as well.
Diagnosis Procedures To Check Before Repairing Your Timing Chain:
- Scan Vehicle For Faults
- Check Base Timing
- Cylinder Compression Test
- Cylinder Leak Down Test
This Timing Chain Kit Includes:
- Timing Chain (Camshafts To Crank Shaft)
- Timing Chain Tensioner (Updated Version)
- Guide Rails
- Cambridge
- Upper Timing Chain Cover Gasket
- Lower Timing Chain Cover
- New Hardware To Complete Timing Chain Service
- Sealant To Seal Lower Timing Chain Cover
- 5W-40 Liqui Moly Oil Change Kit
- G13 Coolant
Torque Specs:
- Timing Chain Tensioner Bolts (9 Nm)
- Timing Chain Tensioner Guide Bolt (20 Nm)
- Timing Chain Guide Bolts (20 Nm)
- Cambridge Bolts T30 (9 Nm)
- Cambridge Bolt Triple Square M6 (8 Nm + 90°) M8 (20 Nm + 90°)
- Cambridge Bolt That Requires Special Tool Camshaft Adjusting Socket LEFT HAND THREAD (35 Nm)
- Lower Timing Chain Cover Bolts (8 Nm)
- Crankshaft Bolt (150 Nm + 90°)
About Genuine VW Audi
The Volkswagen Group, also known as “VAG”, consists of Volkswagen, Audi, Lamborghini, Bentley, Bugatti, Porsche, Ducati, MAN, Scania, SEAT, and Skoda. The original parts used by VAG to build your car are available as replacement parts under the “Genuine VAG” brand. Manufactured under the direction of VAG, expect excellent quality and a premium price since these parts are available exclusively through the VAG Dealership network.
You may not realize this, but the parts that make up your VAG are not necessarily manufactured by VAG. No cause for concern, as VAG designs the part, hires a manufacturer, and ensures its quality to you. In fact, many of these manufacturers have been making parts for VAG for decades. In our industry these manufacturers are called OEM (Original Equipment Manufacturers), and these are often brands you recognize, including Lemforder, ZF, Sachs, Bosch, Valeo, Zimmermann, Siemens VDO, Corteco, and more. Don’t be surprised to open that Genuine VAG parts box and find an OEM branded part inside, simply with the addition of a VAG logo.
Be sure to keep an eye out for OE tags on our product pages to quickly identify parts coming direct from OE manufacturers. That extra bit of insight could save you some serious money while shopping! Refer to our OE Academy for further information regarding the OE/OEM tags throughout the site.
Fits These Cars
A4 Quattro Audi CPMA
-
2013 Audi A4 Quattro Base Sedan 2.0L L4 CPMA Manual Engine Timing Chain Kit
-
2013 Audi A4 Quattro Base Sedan 2.0L L4 CPMA Automatic Engine Timing Chain Kit
A5 Quattro Audi CPMA
-
2013 Audi A5 Quattro Base Coupe 2.0L L4 CPMA Manual Engine Timing Chain Kit
-
2013 Audi A5 Quattro Base Coupe 2.0L L4 CPMA Automatic Engine Timing Chain Kit
-
2013 Audi A5 Quattro Cabriolet Convertible 2.0L L4 CPMA Automatic Engine Timing Chain Kit
Q5 Audi CPMA
-
2013 Audi Q5 Premium Sport Utility 2.0L L4 CPMA Automatic Engine Timing Chain Kit
-
2013 Audi Q5 Premium Plus Sport Utility 2.0L L4 CPMA Automatic Engine Timing Chain Kit
allroad Audi CPMA
-
2013 Audi allroad Premium Wagon 2.0L L4 CPMA Automatic Engine Timing Chain Kit
-
2013 Audi allroad Premium Plus Wagon 2.0L L4 CPMA Automatic Engine Timing Chain Kit
-
2013 Audi allroad Prestige Wagon 2.0L L4 CPMA Automatic Engine Timing Chain Kit
