06J103600AF-URP-KT
For some odd reason VW/Audi decided to use a "Plastic" oil pan on the new MQB platform engines! This could lead to a huge problem especially if your car is lowered. One hard smack and you could end up with a cracked oil pan or worse a blown engine and a huge repair bill.
To help solve this problem UroTuning has assembled a Steel Metal Oil Pan Conversion Kit. This kit allows you to swap out the existing plastic oil pan with a much stronger steel pan. The installation is a straight swap and everything needed to complete the conversion is included.
Factory Torque Spec : 22 lb-ft
Don't forget to grab an Oil Service Kit to complete this job!
Mk5 or Mk6 2.0T TSI
Mk7 1.8T/2.0T Gen3

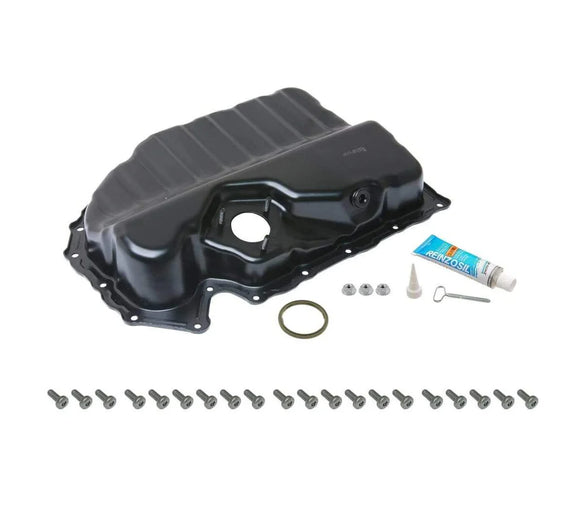

Kit Includes:
- Oil Pan (Uro Parts)
- (20) Oil Pan Bolts M6x16 (Aftermarket)
- Oil Pan Gasket Sealer (Victor Reinz)
- (3) Oil Level Sensor Mounting Nuts (VW/Audi)
- Oil Level Sensor Gasket (VW/Audi)
Part #'s
Oil Pan
06J-103-600-AF / 06J103600 AF / 06J 103 600 AF
06J-103-600-T / 06J103600 T / 06J 103 600 T / 06J103600T
Oil Pan Bolts M6x16
N91-096-701 / N91 096 701 / N91096701
Valve Cover Shouldered Nut (M6)
N01-508-210 / N01 508 210 / N01508210
Oil Pan Gasket Sealer
D176404A2
Oil Level Sensor Gasket
038-103-196 / 038 103 196 / 038103196B
381-031-96 / 381 031 96 / 38103196
---
Kit Includes:
- (20) N91096701-AFT - Oil Pan Bolt (M6x16) - VW/Audi 2.0T TSi / Mk5 / Mk6 / CC / A3 (Aftermarket)
- (1) D176404A2-VR - Reinzosil Oil Pan Gasket Sealer (Victor Reinz)
- (1) 038103196B - Oil Level Sensor O-Ring - VW/Audi 1.4T / 2.0T TSI / 3.0T / 3.0 TDI (VW/Audi)
- (1) 06J103600AF-URP - Oil Pan Cover (Lower) - VW/Audi 2.0T TSi (URO Parts)
- (3) N01508210-MCM - Valve Cover Shouldered Nut (M6) VW/Audi 1.8T (Aftermarket)
This part fits the following vehicles
| Make | Model | Submodel | Engine | Drive |
|---|---|---|---|---|
| Audi | A3 8V (2014-2020) | Sedan | 1.8T | |
| Audi | A3 8V (2014-2020) | Sedan | 2.0T | FWD |
| Audi | A3 8V (2014-2020) | Sedan | 2.0T | Quattro |
| Audi | S3 8V (2015-2020) | Sedan | 2.0T | |
| VW | Alltrack Mk7 (2017-2019) | 1.8T | ||
| VW | CC (2009-2017) | 2.0T | ||
| VW | EOS (2007-2015) | 2.0T | ||
| VW | Golf/GTI Mk5 (2006-2009) | GTI | 2.0T TSI (2008.5+) | |
| VW | Golf/GTI Mk6 (2010-2014) | GTI | 2.0T | |
| VW | Golf/GTI Mk7 (2015-2017) | Golf | 1.8T | |
| VW | Golf/GTI Mk7 (2015-2017) | Sportwagen | 1.8T | |
| VW | Golf/GTI Mk7 (2015-2017) | GTI | 2.0T | |
| VW | Golf/GTI Mk7.5 (2018-2021) | Golf | 1.8T | |
| VW | Golf/GTI Mk7.5 (2018-2021) | Sportwagen | 1.4T | FWD |
| VW | Golf/GTI Mk7.5 (2018-2021) | Sportwagen | 1.4T | 4Motion |
| VW | Golf/GTI Mk7.5 (2018-2021) | Sportwagen | 1.8T | FWD |
| VW | Golf/GTI Mk7.5 (2018-2021) | Sportwagen | 1.8T | 4Motion |
| VW | Golf/GTI Mk7.5 (2018-2021) | GTI | 2.0T | |
| VW | Mk5 (2006-2010) | Jetta | 2.0T TSI (2008.5+) | |
| VW | Mk5 (2006-2010) | GLI | 2.0T TSI (2008.5+) | |
| VW | Mk6 (2011-2014) | GLI | 2.0T GLI (2012-2013) | |
| VW | Mk6 Golf R (2012-2013) | 2.0T | ||
| VW | Mk7 (2019-2021) | GLI | 2.0T | |
| VW | Mk7 Golf R (2015-2017) | 2.0T | ||
| VW | Mk7.5 (2022-2024) | GLi | 2.0T | |
| VW | Mk7.5 Golf R (2018-2021) | 2.0T | ||
| VW | Mk7.75 (2025+) | GLi | 2.0T | |
| VW | Passat B6 (2006-2010) | 2.0T | ||
