TSB Failure Parts & Turbo Install Gasket Set - Audi 4.0T / C7 S6 / C7 S7 / D4 A8 / D4 S8 / RS7

TSB Failure Parts & Turbo Install Gasket Set - Audi 4.0T / C7 S6 / C7 S7 / D4 A8 / D4 S8 / RS7

$644.99 CAD $893.56 CAD Save $248.57 CAD

Shipping calculated at checkout

Assembled by UROTuning SKU: 40T-TSB-TIK-KT

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>
Description Availability

40T-TSB-TIK-KT

A very common problem with the 4.0T that has caused many blown turbochargers. The original turbo oil strainer from the factory are known to get clogged up an starve the turbo of oil resulting in turbo failure. This Kit provides you with all the parts you need to professionally service your turbo oil strainer by replacing it with the latest revision from the dealer. This Kit is made up mostly with Genuine Audi Parts while being paired with an OEM quality Elring Turbo Install Kit.

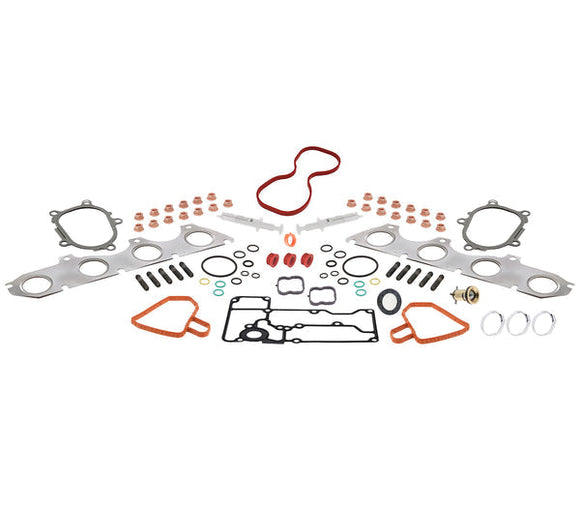

Kit Includes:

- (16) M8 Self-Locking Nuts
- (2) Oil Supply Line O-Rings
- (2) Sealing O-Rings
- (10) Turbocharger Studs
- (10) Turbocharger Exhaust Housing Locking Nuts
- (2) Exhaust Manifold Gaskets
- (2) Turbo to Downpipe Gaskets
- (2) Sealing O-Ring
- (2) Sealing O-Ring
- (1) Oil Return Hose Gasket
- (1) Oil Separator Gasket
- (3) Pinch Clamp (28.6x7x.6mm)
- (1) Oil Check Valve
- (1) Turbo Oil Strainer (Revision G)
- (2) Sealing O-Ring (Yellow)
- (1) Throttle Body Gasket
- (2) Intercooler Tube Seal
- (1) Intercooler Gasket (Right)
- (1) Intercooler Gasket (Left)
- (3) Oil Separator Gasket
- (1) Crankcase Vent Valve Gasket



Part #'s

Self-Locking Nut

N90-894-601 / N90894601 / N90 894 601 / N90894601 x 16


Oil Supply Line O-Ring

N91-056-801 / N91056801 / N91 056 801 / N91056801 x 2


Sealing O-Ring

WHT-001-011-A / WHT001011 A / WHT 001 011 A / WHT001011A x 2


Turbocharger Stud

N91-153-902 / N91153902 / N91 153 902 / N91153902 x 10


Turbocharger Exhaust Housing Locking Nut

N91-130-802 / N91130802 / N91 130 802 / N91130802  x 10


Exhaust Manifold to Cylinder Head

079-253-039-M / 079253039 M / 079 253 039 M / 079253039M x 2


Turbo to Downpipe Gasket

4G0-253-115-D / 4G0253115 D / 4G0 253 115 D / 4G0253115D x 2


Sealing O-Ring

WHT-005-529 / WHT 005 529 / WHT005529 x 2


Sealing O-Ring

WHT-006-537 / WHT 006 537 / WHT006537 x 2


Oil Return Hose Gasket

WHT-006-901-A / WHT006901 A / WHT 006 901 A / WHT006901A x 1


Oil Separator Gasket

079-103-583-A / 079103583 A / 079 103 583 A / 079103583A x 1


Pinch Clamp (28.6x7x.6mm)

N90-409-501 / N90 409 501 / N90409501 x 3


Oil Check Valve

079-103-175-C / 079103175 C / 079 103 175 C / 079103175C x 1


Turbo Oil Strainer (Revision G)

079-115-175-G / 079115175 G / 079 115 175 G / 079115175G x 1


Sealing O-Ring

WHT-001-011 / WHT 001 011 / WHT001011 x 2


Throttle Body Gasket

079-145-818 / 079 145 818 / 079145818 x 1


Intercooler Tube Seal

079-145-417-B / 079145417 B / 079 145 417 B / 079145417B x 2

079-145-417-A / 079145417 A / 079 145 417 A / 079145417A


Intercooler Gasket (Right)

079-129-717-K / 079129717 K / 079 129 717 K / 079129717K x 1


Intercooler Gasket (Left)

079-129-717-J / 079129717 J / 079 129 717 J / 079129717J x 1


Oil Separator Gasket

079-103-583 / 079 103 583 / 079103583 x 3


Crankcase Vent Valve Gasket

079-103-161-Q / 079103161 Q / 079 103 161 Q / 079103161Q x 1




This Part Fits The Following Vehicles

MAKE MODEL SUBMODEL ENGINE DRIVETRAIN
Audi A8 D4 (2011-2017) 4.0T V8
Audi RS7 C7 (2013-2019) 4.0T V8
Audi S6 C7 (2012-2018) 4.0T V8
Audi S7 C7 (2012-2018) 4.0T V8
Audi S8 D4 (2012-2017) 4.0T V8
