Turbocharger Installation Kit - VW/Audi / TDI / CRUA / CVCA / 8V A3 / Mk7 / B7 Passat / & More

Turbocharger Installation Kit - VW/Audi / TDI / CRUA / CVCA / 8V A3 / Mk7 / B7 Passat / & More

$144.99 CAD $181.79 CAD Save $36.80 CAD

Genuine VW Audi SKU: TIK-CVCACRUA-KT

<p>Earn [points_amount] when you buy this item.</p>
Description Availability

TIK-CVCACRUA-KT

Everything you need to professionally install your turbo on your CRUA or CVCA TDI. Includes all Genuine VW/Audi Parts.

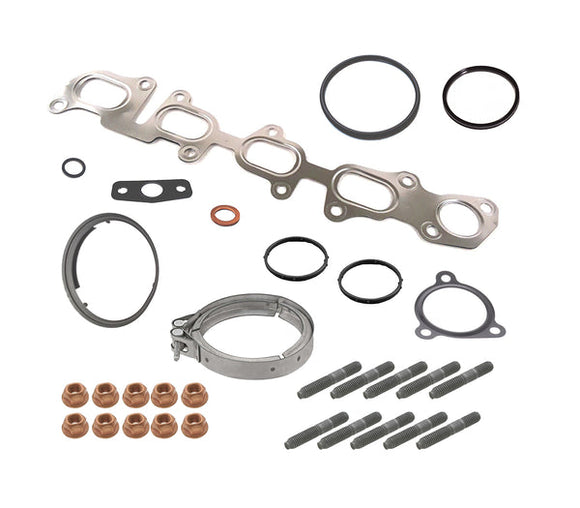

Kit Includes:

- (1) Exhaust Manifold Gasket
- (1) Turbocharger Oil Return Line O-Ring
- (1) Turbocharger Oil Line Gasket (Return)
- (1) Cooling Line Sealing Washer
- (1) Damper O-Ring
- (1) Charge Pipe O-Ring
- (2) EGR Cooler Seals
- (1) EGR Cooler Gasket
- (1) EGR Cooler Clamp
- (1) EGR Valve Gasket
- (10) Locking Nuts (M8x1.25)
- (10) Exhaust Manifold Studs (8x35)



Part #'s


Exhaust Manifold Gasket

04L-253-039-B / 04L253039 B / 04L 253 039 B / 04L253039B


Turbocharger Oil Return Line O-Ring

WHT-007-702 / WHT 007 702 / WHT007702


Turbocharger Oil Line Gasket (Return)

03L-145-757-G / 03L145757 G / 03L 145 757 G / 03L145757G

04B-145-757 / 04B 145 757 / 04B145757


Cooling Line Sealing Washer

N90-707-001 / N90 707 001 / N90707001


Damper O-Ring

04L-145-117 / 04L 145 117 / 04L145117


Charge Pipe O-Ring

04L-145-119-A / 04L145119 A / 04L 145 119 A / 04L145119A


EGR Cooler Seal

04L-131-547-T / 04L131547 T / 04L 131 547 T / 04L131547T


EGR Cooler Gasket

04L-131-547 / 04L 131 547 / 04L131547


EGR Cooler Clamp

04L-131-455-A / 04L131455 A / 04L 131 455 A / 04L131455A


EGR Valve Gasket

04L-131-547-A / 04L131547 A / 04L 131 547 A / 04L131547A


Locking Nut (M8x1.25)

N90-894-601 / N90 894 601 / N90894601


Exhaust Manifold Stud (8x35)

N90-188-902 / N90 188 902 / N90188902

This Part Fits The Following Vehicles

IMPORTANT FITMENT NOTE! FITS CRUA & CVCA ENGINE CODE MODELS ONLY
MAKE MODEL SUBMODEL ENGINE DRIVE
Audi A3 8V Sedan (2014-2020) TDi
VW Beetle (2012-2019) TDi
VW Mk6.5 (2015-2018) Jetta TDI
VW Mk7 (2015-2017) Golf TDi
VW Mk7 (2015-2017) Sportwagen TDi
VW Passat B7 (2012-2019) TDi

This website does not show live stock.

If the product is in stock we ship same/next day.

If a product needs to be ordered in the typical wait time is 1-2 weeks. This means the product is special ordered.

Shipping times vary depending if the part is in stock at our warehouse and which shipping option is chosen at checkout.

Please contact us for an accurate ETA and availability.
