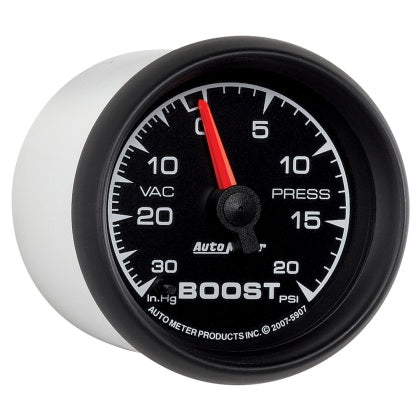

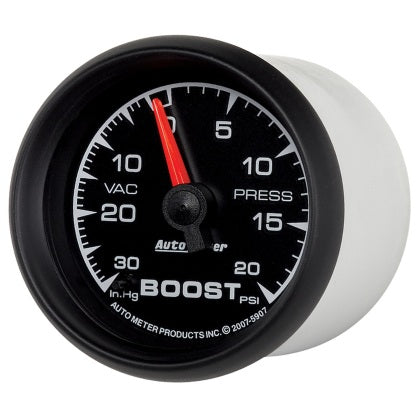

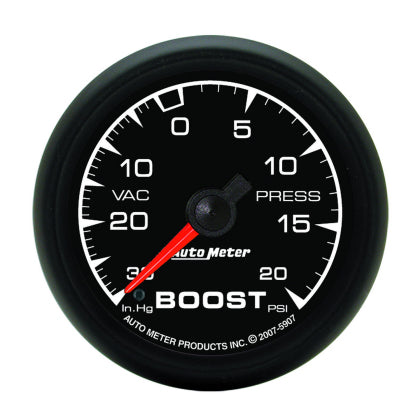

Autometer ES 52.4mm 30 In. HG/20 PSI Vacuum/Boost Gauge

5907

DESCRIPTION:
The standard in the industry, AutoMeter’s Mechanical Boost/Vac Gauges have found their way into more builds than any other. Using a patented, high precision bourdon tube meter movement, there isn’t another gauge on the market that can lay claim to the levels of accuracy or durability you’ll find here. A simple 1/8” NPT pressure connection requires no electrical hookup for operation. Includes 1/8” NPT fittings and nylon line kit.
Feature Points
Modern red LED through-the-dial lighting provides clear visibility during nighttime use
AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
No electrical system required for gauge operation - compatible with every street or race vehicle
Gauge kit includes 1/8” nylon line, T-Fitting, vacuum fitting, compression fittings, mounting hardware, and detailed instructions for installation
Mechanical movements provide accuracy and durability even in the harshest environments
Ships With
1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
2230
California Residents: Prop 65 WARNING
REVIEWS:
Search topics and reviews
Search topics and reviews
ϙ
Search
★★★★★
No rating value
Be the first to review this product
. This action will open a modal dialog.
Write a review
QUESTIONS:
★★★★★
★★★★★
No rating value for 2-1/16" BOOST/VACUUM, 30 IN HG/20 PSI, MECHANICAL, ES
Search questions and answers
Search questions and answers
ϙ
Search
0
Reviews
4
Questions
4
Answers
Questions
Ask a question
1–4 of 4 Questions
Sort by:
▼
Menu
Rees
· 2 years ago
What is the bezel made from; and is the glass flat or domed?
1
answer
Answer this Question
Jim from AutoMeter · 2 years ago
For this product, the lens is flat and the bezel is aluminum.
Helpful?
Yes · 0
No · 0
Report
AnalogDan
· 6 years ago
What size are the hose barb ends on the nylon Tee fitting that comes with the gauge ? Thank you.
1
answer
Answer this Question
Zach from AutoMeter · 6 years ago
Thank you for your question. This gauge comes with our #3291 which has 3/16" barbs. We offer part #3276 separately which use 1/4" barbs.
Helpful?
Yes · 1
No · 0
Report
11Turbo
· 7 years ago
is the LED dimmable compatible? Ie: just the bulb itself? I am looking to hook it up to my dash dimmer circuit in my car so I can adjust brightness
1
answer
Answer this Question
Joseph At AutoMeter · 7 years ago
Thank you so much for contacting us. These gauges use a series of LEDs that are mounted directly to the circuitboard. This design allows us to get really clear, consistent lighting without visible "hot spots". Because of this, the gauge can only be dimmed with a pulse width modulated dimmer and not the conventional linear rheostat dimmers found on most vehicles. Very new cars sometimes use this style of dimmer (modern Mustangs are an example), but in most cases, you'll want to wire a 9114 dimmer module in series with the output from your factory dimmer to control gauge brightness:
https://www.autometer.com/led-lighting-dimmer.html
Hope this helps!
Helpful?
Yes · 3
No · 0
Report
Daygoslow
· 7 years ago
It says the lighting is led but what color? And can that color be changed?
1
answer
Answer this Question
Joseph At AutoMeter · 7 years ago
Thank you so much for contacting us. The ES series gauges light up red. The lighting color is a fixed configuration and can't be changed. Hope this helps!
Helpful?
Yes · 4
No · 0
Report
