DESCRIPTION:

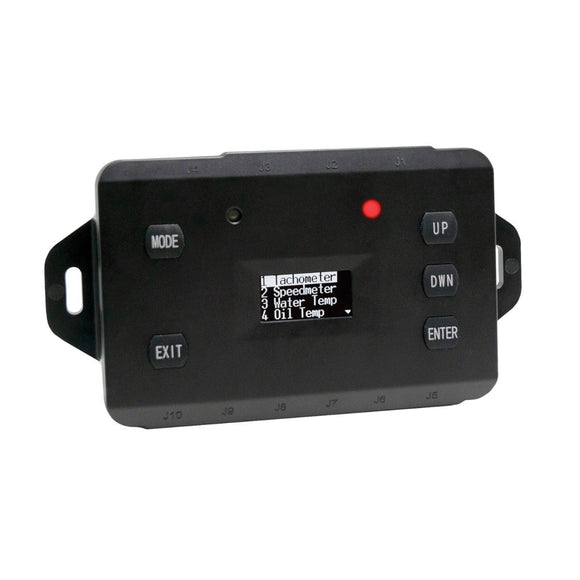

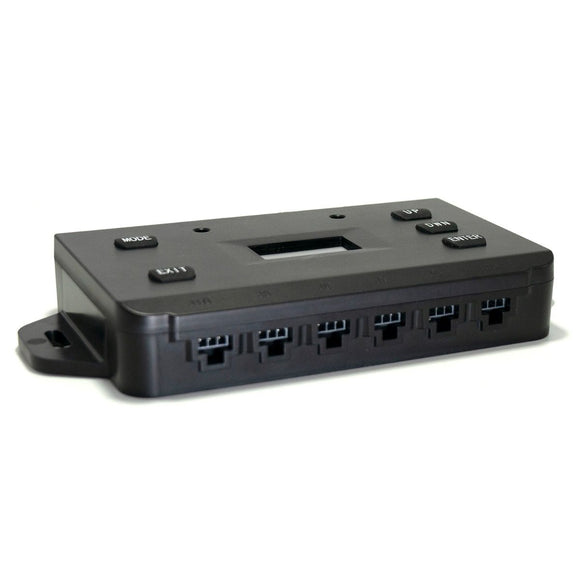

AutoMeter’s EFI CAN Bridge for Holley systems is the ideal solution to streamline adding gauges or an InVision LCD dash to Holley EFI-equipped engines. Compatible with Dominator, Terminator, and Sniper systems, this intuitive product simply plugs into the CAN output and captures the existing sensor data and outputs up to five signals to drive AutoMeter InVision dashes or AutoMeter tachometers, electronic speedometers, as well as short sweep electric temperature, pressure, and volts gauges on your vehicle. Quickly and easily setup your system to output the available parameters of your choice utilizing the module’s menu navigation buttons and OLED display. Simplify the next instrumentation installation on your ride with the advanced EFI CAN Bridge for Holley systems from AutoMeter!
Feature Points
- Plug-n-play from Holley's EFI systems into AutoMeter InVision LCD dashes (V2 and newer) and AutoMeter tachometers, electronic speedometers, and short sweep electric gauges (not compatible with stepper motor gauges)
- Designed to read specific channels from the following Holley EFI systems: HP, Dominator, Terminator, Terminator X, Terminator X Max, Sniper V1, and Sniper V2 (requires separate harness 5240) - AutoMeter EFI Bridge for Holley does not interfere with the operation of the Holley display
- 5 total channels available – tachometer, speedometer, temp, pressure, & volts (see Appendix in instructions for breakdown of available sensors for each Holley system)
- Simplifies instrumentation wiring and installation – no additional sensors to hookup, which means less wires to connect and adapters to worry about
- Sensor data must be present on the data stream to function, otherwise a discrete sensor must be used
- Module includes OLED display and five push buttons to effortlessly navigate menus and program system for operation
