AWE Touring Edition Exhaust for Audi B8 S4 3.0T - Diamond Black Tips (90mm)

3010-43014

Welcome to the mothership of 3.0T exhausts.

Our 3.0T exhaust system represents the most comprehensive exhaust development project in our company history. The 3.0T systems have paved the way for future exhaust technologies that can now be found in most every AWE Tuning ® exhaust product. We have spent considerable time and effort during development to achieve remarkable civility when idling and at part throttle cruising, while also producing a war-cry wail when full throttle is applied. These systems are handmade in-house and command respect while remaining sophisticated, refined, and powerful, all at once.

Highlights of the Audi S4 3.0T Touring Edition Exhaust System

Handcrafted systems where every detail drives toward maximum performance, quality, and the perfect sound:


Featuring AWE Tuning 180 Technology®
Adds 8 hp and 9 ft-lbs of torque at the crank
Increased pipe diameter to 2.5” to better let the engine exhale
Strategic elimination of mufflers to release tone when uncorked
Available with chrome silver or diamond black adjustable tips
Engineered, developed, tested and manufactured in-house
Thick .065" wall T304 stainless steel tubing
Stainless steel TIG welds
High quality stainless steel band clamps
Stainless steel center muffler with OEM grade stainless steel wool and German composite packing material
Optional downpipes for fine tuning sound volume
Lifetime Exhaust Warranty

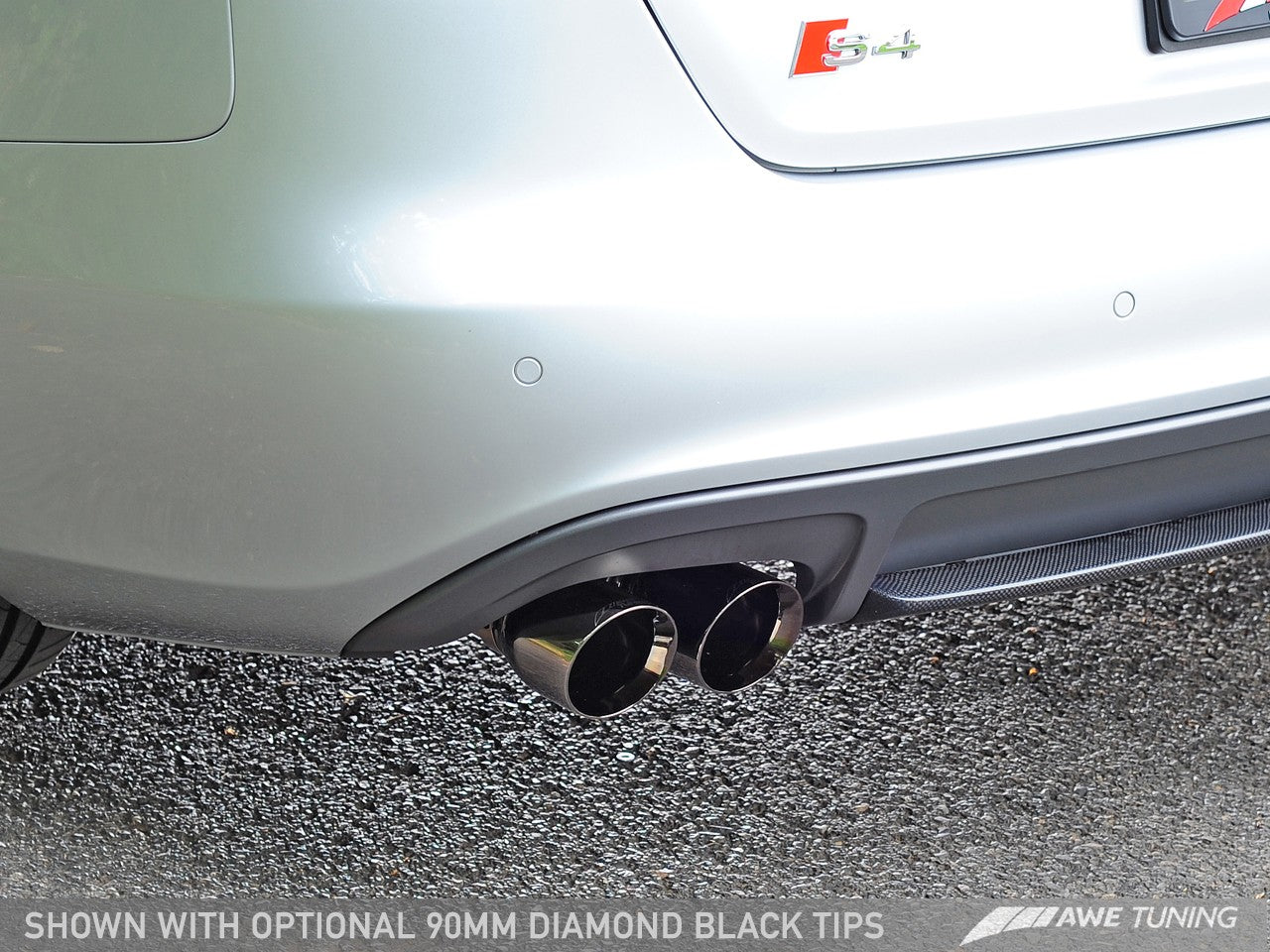

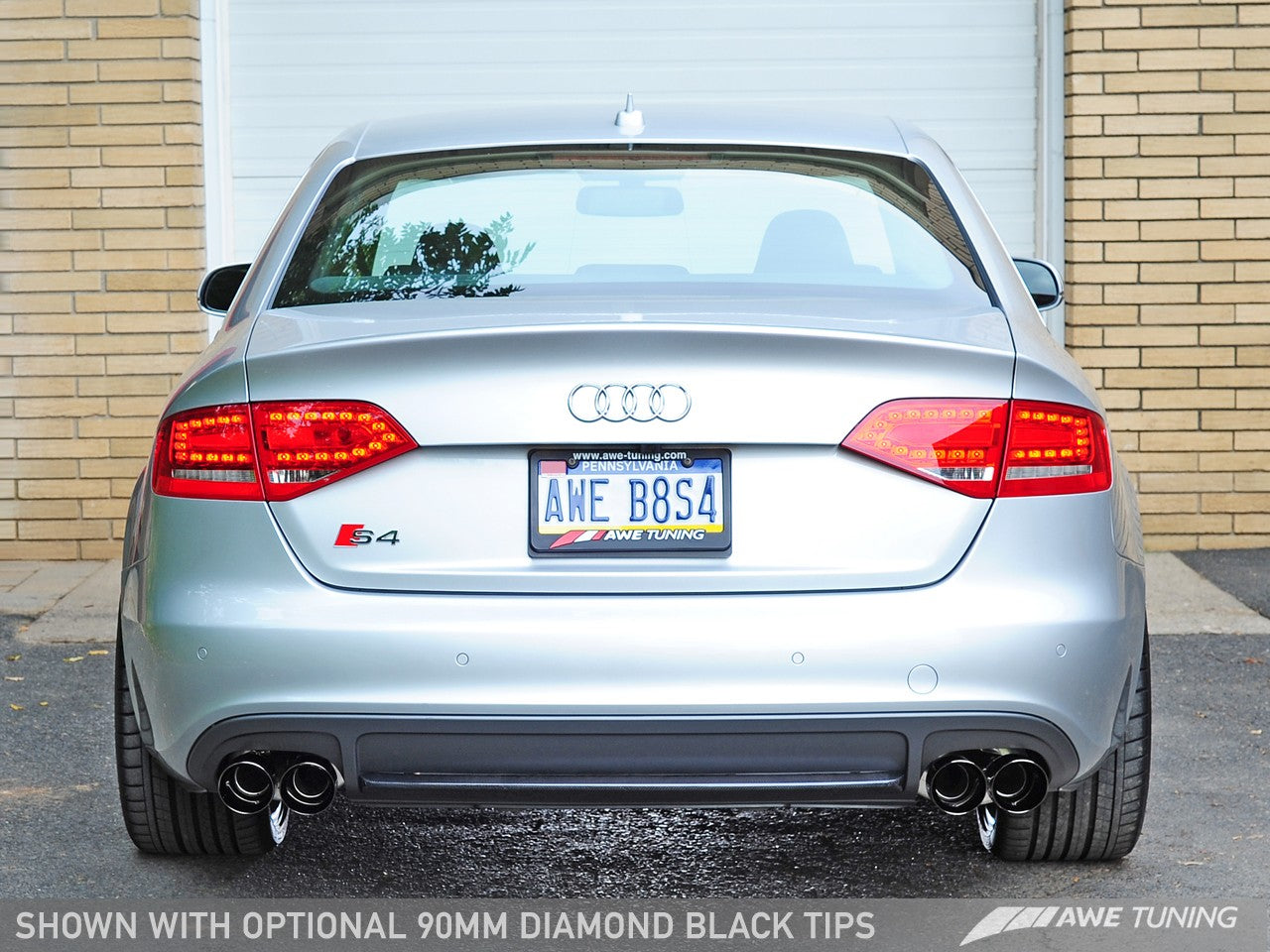

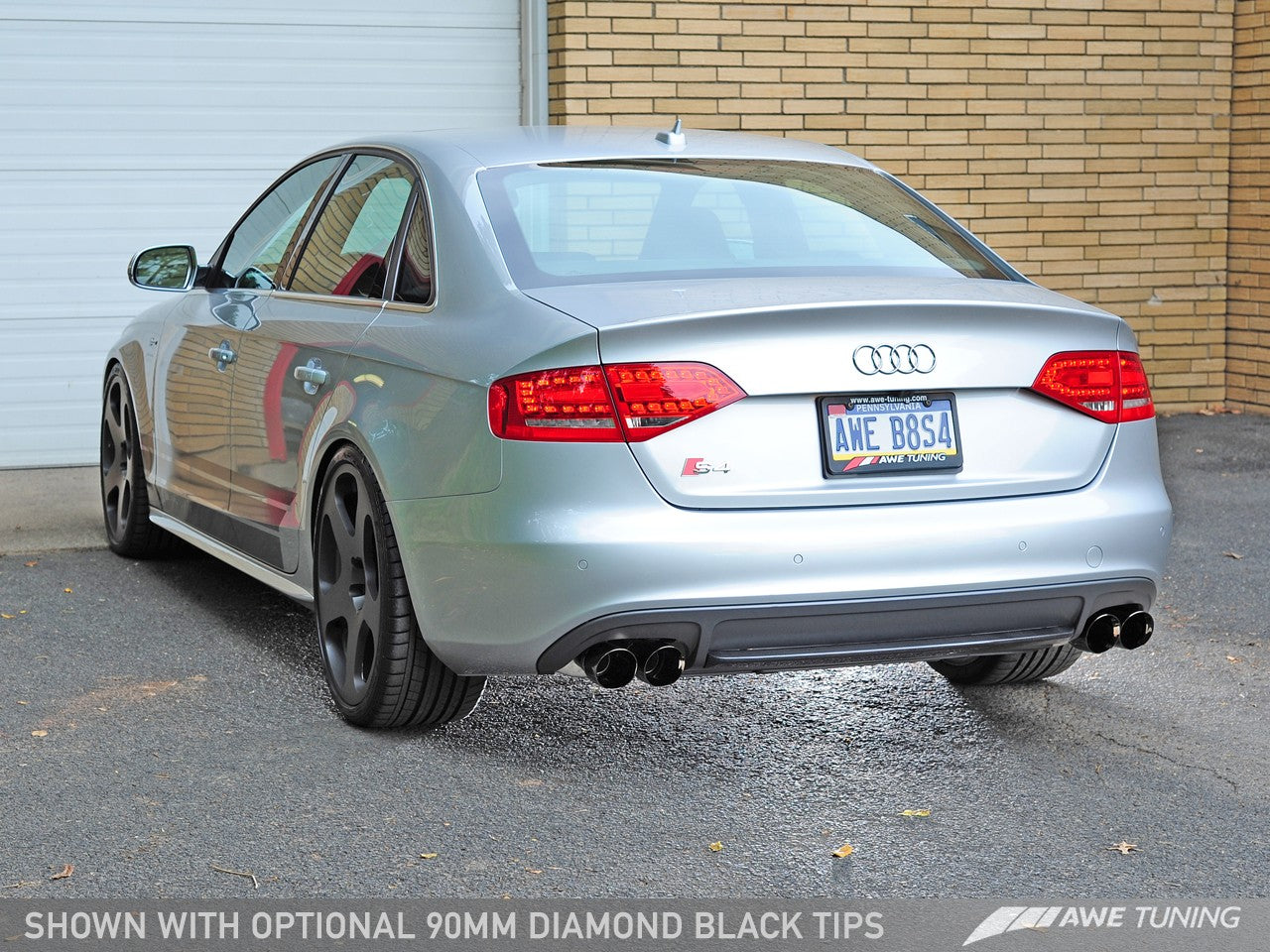

90mm slash-cut diamond black tips
90mm slash-cut chrome sIlver tips
Sound Perfection: AWE Tuning 180 Technology®

As exhaust gases exit the 3.0T engine and flow into an AWE Tuning 180 Technology® equipped resonator, they pass through strategically located ports, and into reflection chambers. Sound waves, carried by these exhaust gasses, bounce off the walls of the reflection chambers. By controlling the size and location of the ports and the chambers, we also control when the sound waves exit the chambers. The specific timing of when the reflected sound waves re-join the main exhaust flow creates a one-hundred-and-eighty-degree out-of-phase sound wave that cancels out problematic frequencies. More on AWE Tuning 180 Technology® in the tab above.

Tip options

Exhaust tips include the AWE Tuning logo and double walling to ensure a mirror finish even under hard usage. Options are as follows:

All tips are individually adjustable, so stagger and depth into bumper can be set according to personal taste.

About the downpipes

We offer our Resonated and Non-Resonated Downpipes. Our Resonated Downpipes (strongly recommended for S-tronic cars) feature resonators larger than the stock units in order to produce a mellow sound volume. Our optional Non-Resonated downpipes are suited for owners seeking a "loud" and aggressive sounding system. Both our Resonated and Non-Resonated Downpipes feature larger than stock tubing diameter.

Looking for a lower-cost option? Look no further than the AWE Tuning ® Track Edition Exhaust.

For those open to a louder part-throttle experience, we're introducing the AWE Tuning ® Track Edition Exhaust. Same power and craftsmanship with less mufflers and price. Read more, here.

Read this also

As with all AWE Tuning ® exhaust products, each TIG weld is hand finished internally and flange openings are size matched to their ports -- all to produce the smoothest flow possible. It is this intensive attention to detail that keeps AWE Tuning ® exhaust products heads and shoulders above the rest.

Note: In limited cases, the factory downpipes have been known to emit minor rattling noises when paired with the AWE Tuning S4 3.0T exhaust system. The possibility of rattling is eliminated with the addition of an AWE Tuning downpipe. AWE Tuning downpipes are package discounted when purchased with the exhaust, or if they are purchased within one year of an exhaust purchase.
