447745
Description

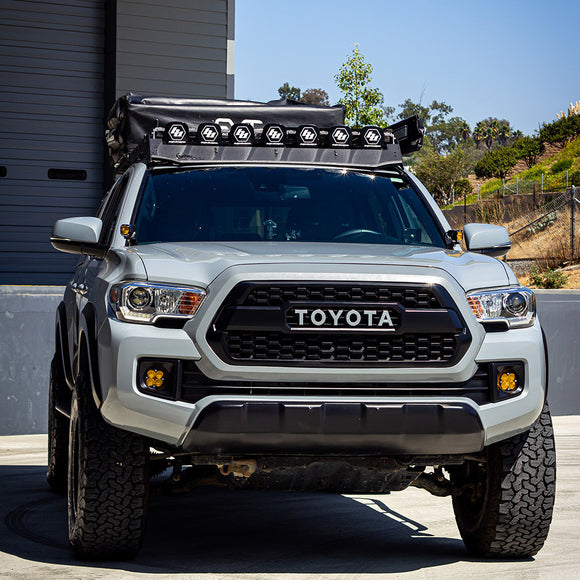

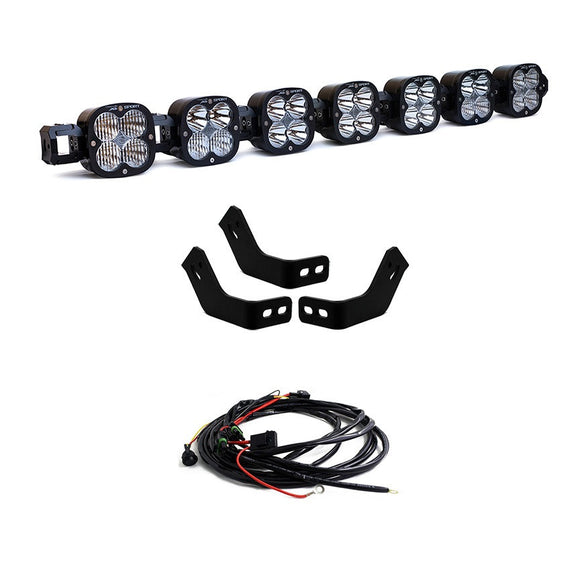

So you’ve got either a Prinsu or a Sherpa Equipment Co. roof rack and you want to mount an LED light bar? We’ve got you covered! These racks come with the option for a 40-inch light bar cutout, for users with this option we’ve created a turn-key kit that includes everything you need to get a performance-based lighting solution. This kit utilizes our 7 Light XL Linkable kit that provides you with a crisp 22,050 lumens. In terms of hardware and accessories, we include brackets that are proprietary to Prinsu’s rack design, all required hardware, a relay harness for the XL Linkable, and Rock Guards. This is an all-inclusive kit that will compliment your Prinsu or Sherpa roof racks along with giving you some serious nighttime lighting performance.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
NOTE: Installation of any roof-mounted lights will cause a degree of added wind noise depending on vehicle type and installed accessories. If you did not purchase a rack with the 40-inch light bar cutout option we have included instructions on how to cut your existing panel.
FITS
SKU: 740005
Dimensions
| Depth (in.) | 2.8 |
| Height (in.) | 4.43 |
| Length (in.) | 45.34 |
Specifications
| Amperage Rating (A) | 14 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Multi-Pattern |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 22,050 |
| Description | 7XL Sport; Multi-Pattern; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 7 |
| Lighting Modes | Beam |
| Lighting Quantity | 28 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Pre-Load Kit; Links; Rock Guards |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL Linkable LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 182 |
| Wiring Harness Included | Yes |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
