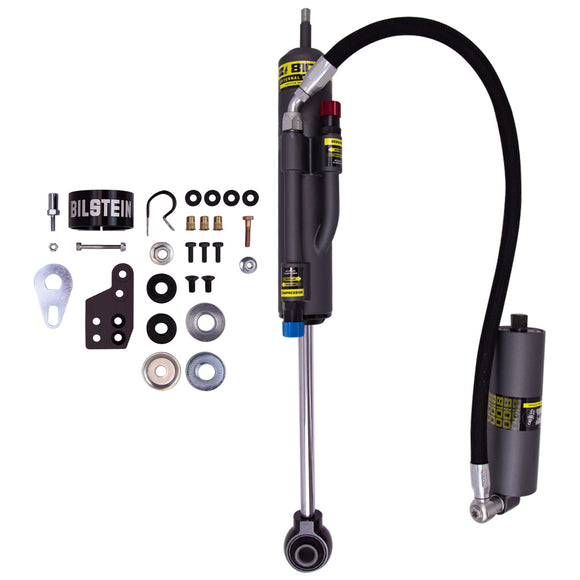

Bilstein 07-14 Toyota FJ Cruiser B8 8100 (Bypass) Rear Left Shock Absorber - 0-2in Lift

25-288155

Toyota FJ Cruiser 2007-2014

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

Collapsed Length (in): 14.72

Extended Length (in): 24.09

Collapsed Length (mm): 374.0

Extended Length (mm): 612.0

Lower Mount Type: Eye 19.25mm

Upper Mount Type: Stem

Internal Design: Monotube

Finish: EVO Grey

Reservoir: Yes

Body Design: Bypass Body (Non-Coilover)

Body Diameter (od): 2.65 in.

Piston Diameter: 60mm

Boot Included: No

Spring Seat Included: No

Shaft Diameter: 18mm

Adjustable Damping: Double Adjustable Compression and Rebound with Click Adjuster Knobs

Interchange Numbers

BQNV 25288155

King Shocks 25001-382

Old Man Emu BP5160025
