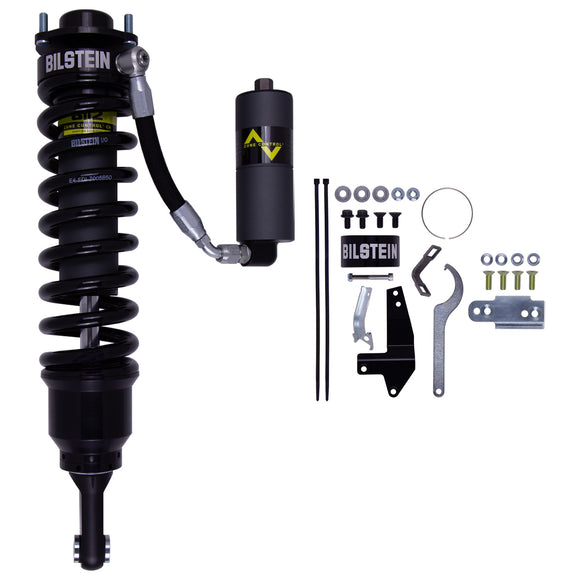

Bilstein B8 8112 Series 03-09 Toyota 4Runner Zone Control Monotube Front Right Corner Module

41-326336

Lexus GX470 2003-2009, Toyota 4Runner 2003-2009, FJ Cruiser 2007-2009

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Collapsed Length (in): 17.99

Extended Length (in): 22.80

Collapsed Length (mm): 456.9

Extended Length (mm): 579.1

Lower Mount Type: Eye 14.1mm

Upper Mount Type: Special

Internal Design: Monotube

Finish: Dampers: EVO Grey / Springs: Black

Reservoir: Yes

Body Design: Smooth Body (Coilover)

Body Diameter (od): 2.65 in.

Piston Diameter: 60mm

Body Material: Steel

Boot Included: No

Spring Seat Included: Yes

Front Main Spring Rate (lbs/in): 600 lbs

Shaft Diameter (mm): 22.0

Adjustable Damping: Non-Adjustable

Optional Heavy Load Springs: 53-291387, 53-332837

Interchange Numbers

Bilstein 41-284834

BQNV 41326336

ICON Vehicle Dynamics 58745

King Shocks 25001-124
