Bilstein B8 6112 2010+ Toyota 4Runner/FJ 6112 Heavy Load Suspension Kit

47-311039

Lexus GX460 2010-2023, Toyota 4Runner 2010-2024, FJ Cruiser 2010-2014

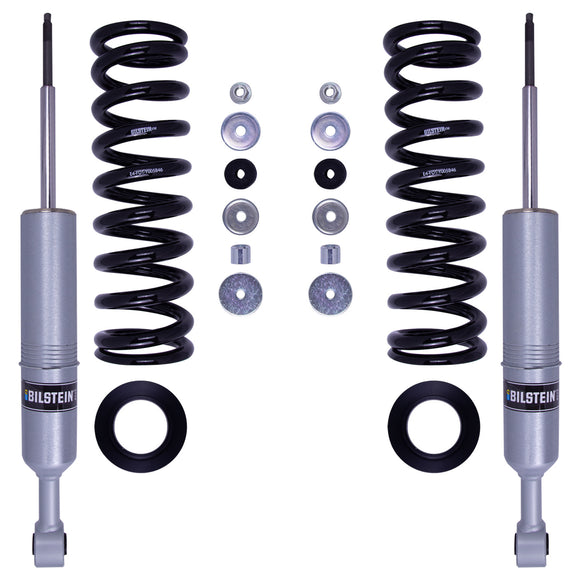

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Collapsed Length (in): 16.86

Extended Length (in): 21.65

Collapsed Length (mm): 428.3

Extended Length (mm): 550.0

Stroke/travel Length (in): 4.79

Internal Design: Monotube

Finish: Dampers: Zinc Plated/Springs: Black

Reservoir: No

Body Design: Snap Ring Grooved Body (Coilover)

Body Diameter (od): 2.65 in.

Piston Diameter: 60mm

Boot Included: No

Spring Seat Included: Yes

Front Main Spring Rate (lbs/in): 700

Shaft Diameter: 18mm

Interchange Numbers

Bilstein 24-311045

Bilstein 47-281202

BQNV 47311039

ICON Vehicle Dynamics 58646-700
