DCT Viton Transmission Gasket Set with Hardware - E9X M3, F8X M2/M3/M4, F10 M5, F06/F13 M6, E89 Z4

The original BMW pan gaskets on DCT transmissions tend to fail as heat and oil exposure take their toll. These upgraded gaskets are made from Viton, and are resistant to temperatures of up to 450 degrees Fahrenheit. For comparison, the original gaskets can only withstand temps around 230 degrees Fahrenheit. Upgrading your DCT transmission pan gaskets is a great idea, whether you have a street car or are hitting the track.

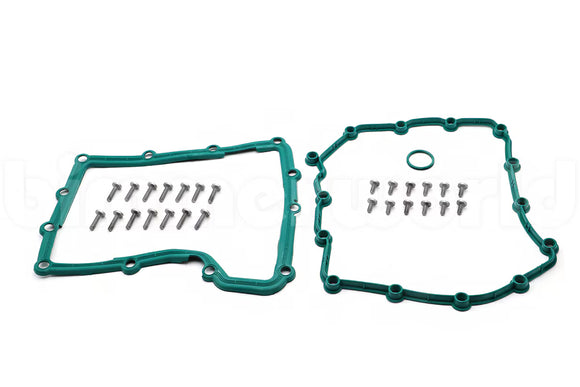

Kit includes -

1 x Viton lower oil pan gasket
14 x lower oil pan screws (M6x24mm)
1 x Viton side cover gasket
12 x side cover screws (M6x14mm)

Replaces the following BMW part numbers:
28607842856 (28-60-7-842-856)
28108070791 (28-10-8-070-791)

BMW Fitments:

1 Series
E82 / E88 (08-13) > 135i N54 (08-10)
E82 / E88 (08-13) > 135i N55 (11-13)
E82 / E88 (08-13) > 135is N55 (11-13)
2 Series
F87 (2016-2021) > M2 Competition S55 (2019+)
F87 (2016-2021) > M2 CS Racing
F87 (2016-2021) > M2 N55 (2016-2018)
3 Series
E90 / E91 / E92 / E93 (06-13) > 335is N54
E90 / E91 / E92 / E93 (06-13) > M3
3 Series
F80 (2015-2018) > M3 (2015-2018)
4 Series
F82 / F83 (2015-2020) > M4 (2015-2020)
F82 / F83 (2015-2020) > M4 GT4
F82 / F83 (2015-2020) > M4 GTS
5 Series
F10 / F11 (11-16) > M5 (2013-2016)
6 Series
F12 / F13 (12-18) > M6
Z Series
E89 Z4 (2009-2016) > Z4 sDrive35i
E89 Z4 (2009-2016) > Z4 sDrive35is
