11617501566KT4
Description
Details
- SKU:
- KIT-11617501566KT4
- Quality:
- OEM
-
OE Numbers
- 11617501566, 11611432559, 11617504535, 11157532649, 11617504536
-
MFG Numbers
- 11617501566, ABV0125, ABV0122, ABV0100R, ABV0109R, 780.154, 11431740045, 359390, 40-76014-20
This Kit Includes
| Qty | Part | SKU | Brand | |
|---|---|---|---|---|
| 1 | Engine Crankcase Vent Valve | OEM-11617501566 | URO Parts |
|
| 1 | Engine Oil Separator Hose | CRP-ABV0125 |
|
|
| 1 | Engine Oil Separator Hose | CRP-ABV0122 | Vaico |
|
| 1 | Engine Crankcase Breather Hose | CRP-ABV0100R |  |
|
| 1 | Engine Crankcase Breather Hose | CRP-ABV0109R | Burgaflex | |
| 6 | Engine Air Distribution Piece O-Ring | ELR-780154 |  |
|
| 1 | Engine Intake Boot | BMW-13547505836 | |
|
| 1 | Engine Oil Dipstick O-Ring | OES-11431740045 | CRP |
|
| 1 | Fuel Injection Throttle Body Mounting Gasket | ELR-359390 | |
|
| 2 | Engine Oil Dipstick O-Ring | OES-11431717666 | VR |
|
| 1 | Fuel Injection Idle Air Control Valve Gasket | BMW-11611437453 | VR |
Product Information

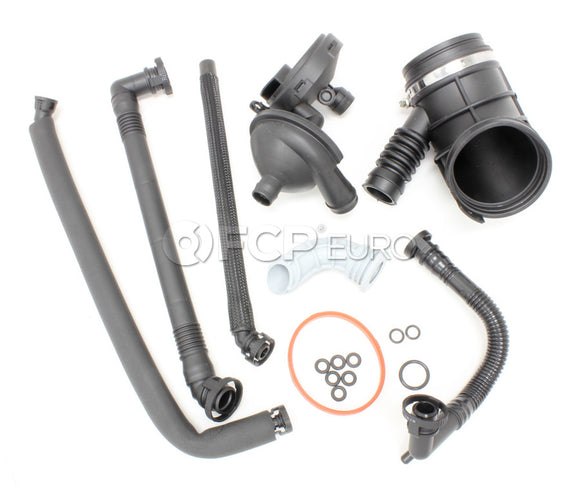

A comprehensive standard PCV kit for your E39 530i
This PCV kit features all standard hoses and valve. This system is installed in most market places and does not have any insulation on the hoses or the valves. This kit is ideal if you live in a climate where the temperature rarely drops below freezing.
The plastic in these components deteriorates over time and eventually will crack or break. This will cause vacuum leaks and other detrimental issues which can cause engine damage and poor performance.
A PCV System, crankcase ventilation system or breather system is a system designed to release pressurized gasses from an engine in a controlled manner.
Breather System Kit Failure Symptoms- Illuminated oil pressure lamp. – Due to clogged oil suction strainer to oil pump or oil filter
- Illuminated Check Engine Lamp- Due to incorrect engine fuel trim level parameters
- Noise (whistling) – Noise due to high pressure in crankcase. This noise will stop if the oil filler cap is removed.
- Poor Drivability- Clogged crankcase ventilation can reduce the engine performance
- Uneven / Oscillating Idling- Caused by clogged crankcase ventilation
- Oil leak- From engine seals due to restricted crankcase ventilation
- Noise (knocking)- Low oil pressure can cause premature bearing wear and lead to internal engine component failure
- High oil consumption/noise from Turbo
- A damaged bearing or seal in the turbo due to lack of oil as a result of oil consumption.
Additional Information
How To Replace a BMW 330xi PCV System, M52TU and M54
About OE Supplier
OE Supplier parts are produced by a manufacturer that meets high quality standards and produces at least one part for a vehicle manufacturer. FCP recommends OE & OEM replacement parts as one of the best options in terms of quality and price. Typically all OE manufacturers adhere to stringent quality control and are known to be exceptional quality. OE Supplier parts will often be packaged in a white box with familiar name brand markings and logos on the part itself.
Fits These Cars
BMW 530i
-
2001 BMW 530i Breather System KitStandard breather system
-
2002 BMW 530i Breather System KitStandard breather system
-
2003 BMW 530i Breather System KitStandard breather system
