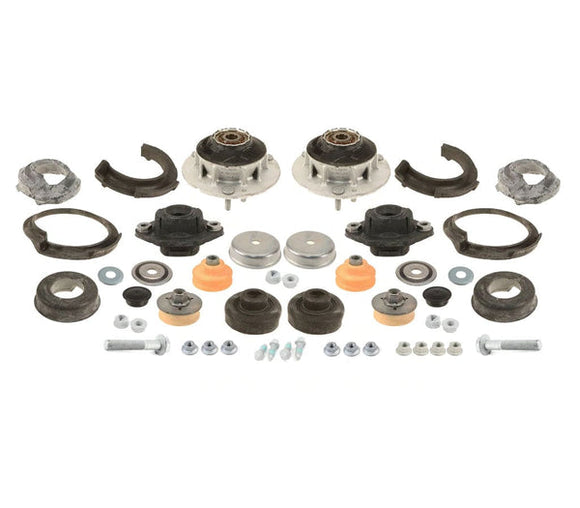

Coilover Installation Kit - BMW E9X XDrive Models Up To 3/2010 Only

This Kit includes every part you need to professionally install coilovers, shocks, and struts using OEM quality Lemforder Strut Mounts. All other parts are Genuine BMW.


Kit Includes:

- (2) Strut Mount Washers
- (6) Self Locking Collar Nut (M8x8 ZNS3)
- (2) Front Lower Spring Pad
- (2) Front Upper Spring Pad
- (4) Self Locking Nut (M14x1.5)
- (2) Hex Bolt With Collar (M14x1.5)
- (6) Sway Bar End Link Nut Front & Rear
- (2) Shock Mount Sealing Grommet
- (4) Torx Bolt with Coller (M10x1.5)
- (2) Upper Rear Spring Pad
- (2) Lower Rear Spring Pad
- (2) Self-Locking Nut (M12X1.5x10)
- (2) Hex Nut With Flange (M10-8)
- (2) Front Strut Mount (Lemforder)
- (2) Strut Mount Rear Upper Upper Section (Lemforder)
- (2) Strut Mount Rear Upper Lower Section (Lemforder)
- (2) Strut Mount Rear Lower (Lemforder)
- (2) Strut Dust Cover
- (2) Bump Stop Support Cup

Part #'s


Strut Mount Washers

31-30-6-763-966 / 31 30 6 763 966 / 31306763966 x 2


Self Locking Collar Nut (M8x8 ZNS3)

31-31-6-769-731 / 31 31 6 769 731 / 31316769731 x 6

31-33-0-141-435 / 31 33 0 141 435 / 31330141435

31-33-1-095-755 / 31 33 1 095 755 / 31331095755


Front Lower Spring Pad

31-33-6-764-372 / 31 33 6 764 372 / 31336764372 x 2


Front Upper Spring Pad

31-33-6-767-500 / 31 33 6 767 500 / 31336767500 x 2


Self Locking Nut (M14x1.5)

33-30-6-760-349 / 33 30 6 760 349 / 33306760349 x 4

31-12-1-092-110 / 31 12 1 092 110 / 31121092110

33-32-0-150-637 / 33 32 0 150 637 / 33320150637


Hex Bolt With Collar (M14x1.5)

33-32-6-762-875 / 33 32 6 762 875 / 33326762875 x 2


Sway Bar End Link Nut Front & Rear

33-32-6-768-884 / 33 32 6 768 884 / 33326768884 x 6


Shock Mount Sealing Grommet

33-50-6-767-010 / 33 50 6 767 010 / 33506767010 x 2


Torx Bolt with Coller (M10x1.5)

33-52-6-764-406 / 33 52 6 764 406 / 33526764406 x 4


Upper Rear Spring Pad

33-53-6-764-419 / 33 53 6 764 419 / 33536764419 x 2


Lower Rear Spring Pad

33-53-6-764-420 / 33 53 6 764 420 / 33536764420 x 2


Self-Locking Nut (M12X1.5x10)

33-32-6-760-668 / 33 32 6 760 668 / 33326760668 x 2

31-12-1-093-267 / 31 12 1 093 267 / 31121093267

33-31-1-138-385 / 33 31 1 138 385 / 33311138385

33-32-0-141-440 / 33 32 0 141 440 / 33320141440

33-32-1-094-605 / 33 32 1 094 605 / 33321094605

33-32-6-751-446 / 33 32 6 751 446 / 33326751446


Hex Nut With Flange (M10-8)

 33-50-6-784-003 / 33 50 6 784 003 / 33506784003 x 2

33-52-6-767-221 / 33 52 6 767 221 / 33526767221

33-52-6-775-726 / 33 52 6 775 726 / 33526775726


Front Strut Mount

31-33-6-775-097 / 31 33 6 775 097 / 31336775097 x 2

31-33-6-768-674 / 31 33 6 768 674 / 31336768674



Strut Mount Rear Upper Upper Section

33-50-6-771-737 / 33 50 6 771 737 / 33506771737 x 2


Strut Mount Rear Upper Lower Section

33-50-6-771-738 / 33 50 6 771 738 / 33506771738 x 2


Strut Mount Rear Lower

33-52-6-768-544 / 33 52 6 768 544 / 33526768544 x 2

33-52-6-772-811 / 33 52 6 772 811 / 33526772811


Strut Dust Cover

31-33-1-110-196 / 31 33 1 110 196 / 31331110196 x 2


Bump Stop Support Cup

33-52-6-764-418 / 33 52 6 764 418 / 33526764418 x 2
