Coilover Installation Kit With 5/6-Bolt Front Strut Mounts - BMW / F2X / F3X

Coilover Installation Kit With 5/6-Bolt Front Strut Mounts - BMW / F2X / F3X

$649.99 CAD $1,113.28 CAD Save $463.29 CAD

Assembled by UROTuning SKU: COIK-F2X-F3X-KT1

<p>Earn [points_amount] when you buy this item.</p>
Description Availability

COIK-F2X-F3X-KT1

This Kit provides you with everything you need to professional install Shocks or Coilovers on to your BMW  F2X & F3X. It replaces all bushings connected to the shock system ensuring you return to that same ride feel when the car was driven off the lot.

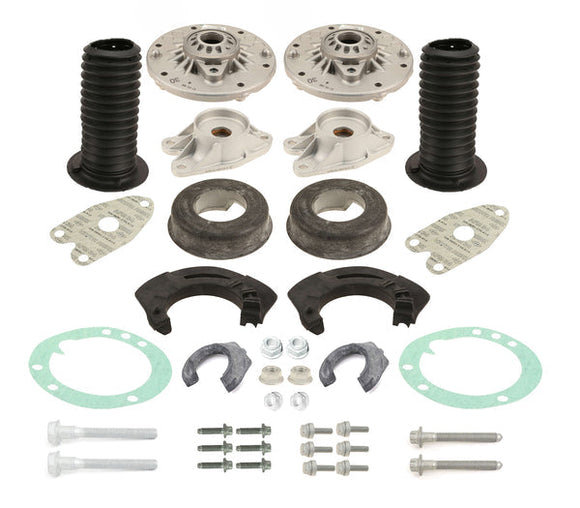

Kit Includes:

- (2) Hex Nuts (Steering Knuckle) - Genuine BMW
- (2) Upper Rear Spring Pads - Genuine BMW
- (2) Self-Locking Nuts (M12X1.5x10) - Genuine BMW
- (2) Front Lower Spring Pads - Genuine BMW
- (2) Strut Dust Sleeves - Febi
- (2) Strut Bolts - Genuine BMW
- (2) Rear Lower Shock Mounting Bolts - Genuine BMW
- (2) Hex Nut With Flange (M10X18Zns3) - Genuine BMW
- (6) Torx Screw With Collar (M8x25) - Genuine BMW
- (2) Lower Spring Pad (Rear)  - Genuine BMW
- (2) Shock Mount Gasket - Genuine BMW
- (6) Strut Mount Bolt (M8X30-10.9) - Genuine BMW
- (2) Strut Mount Washer Gasket - Elwis
- (2) Shock Mount Rear - Febi
- (2) Strut Mount Front - Lemforder



Part #'s

Hex Nuts (Steering Knuckle)

07-11-9-905-032 / 07 11 9 905 032 / 07119


Upper Rear Spring Pads

33-53-6-764-419 / 33 53 6 764 419 / 33536764419


Self-Locking Nuts (M12X1.5x10)

33-32-6-760-668 / 33 32 6 760 668 / 33326760668

31-12-1-093-267 / 31 12 1 093 267 / 31121093267

33-31-1-138-385 / 33 31 1 138 385 / 33311138385

33-32-0-141-440 / 33 32 0 141 440 / 33320141440

33-32-1-094-605 / 33 32 1 094 605 / 33321094605

33-32-6-751-446 / 33 32 6 751 446 / 33326751446


Front Lower Spring Pads

31-33-6-787-114 / 31 33 6 787 114 / 31336787114


Strut Dust Sleeves

31-30-6-791-712 / 31 30 6 791 712 / 31306791712


Strut Bolts

31-30-6-798-530 / 31 30 6 798 530 / 31306798530


Rear Lower Shock Mounting Bolts

07-11-9-907-372 / 07 11 9 907 372 / 07119907372


Hex Nut With Flange (M10X18Zns3)

07-11-9-907-135 / 07 11 9 907 135 / 07119907135


Torx Screw With Collar (M8x25)

07-11-9-907-137 / 07 11 9 907 137 / 07119907137


Lower Spring Pad (Rear)

33-53-6-791-709 / 33 53 6 791 709 / 33536791709


Shock Mount Gasket

33-50-6-866-038 / 33 50 6 866 038 / 33506866038


Strut Mount Bolt (M8X30-10.9)

31-30-6-869-931 / 31 30 6 869 931 / 31306869931


Strut Mount Washer Gasket

31-30-6-869-890 / 31 30 6 869 890 / 31306869890


Shock Mount Rear

33-50-6-862-725 / 33 50 6 862 725 / 33506862725


Strut Mount Front

31-30-6-881-929 / 31 30 6 881 929 / 31306881929

31-30-6-869-888 / 31 30 6 869 888 / 31306869888



This Part Fits The Following Vehicles

IMPORTANT FITMENT NOTE! FOR VEHICLES WITHOUT EDC AND WITH 5/6-BOLT M8 FRONT STRUT MOUNTS
MAKE MODEL SUBMODEL ENGINE DRIVETRAIN
BMW 2 Series F22/F23 (2014-2021) 228i N20 2.0L
BMW 2 Series F22/F23 (2014-2021) 228i xDrive N20 2.0L
BMW 2 Series F22/F23 (2014-2021) M235i N55 3.0L
BMW 2 Series F22/F23 (2014-2021) M235i xDrive N55 3.0L
BMW 2 Series F22/F23 (2014-2021) 230i B46 2.0L
BMW 2 Series F22/F23 (2014-2021) 230i xDrive B46 2.0L
BMW 2 Series F22/F23 (2014-2021) M240i B58 3.0L
BMW 2 Series F22/F23 (2014-2021) M240i xDrive B58 3.0L
BMW 3 Series F30/F31/F34 (2012-2019) 320i N20 2.0L
BMW 3 Series F30/F31/F34 (2012-2019) 320i xDrive N20 2.0L
BMW 3 Series F30/F31/F34 (2012-2019) 328d N47 2.0L
BMW 3 Series F30/F31/F34 (2012-2019) 328d xDrive N47 2.0L
BMW 3 Series F30/F31/F34 (2012-2019) 328i N20 2.0L
BMW 3 Series F30/F31/F34 (2012-2019) 328i xDrive N20 2.0L
BMW 3 Series F30/F31/F34 (2012-2019) 335i N55 3.0L
BMW 3 Series F30/F31/F34 (2012-2019) 335i xDrive N55 3.0L
BMW 3 Series F30/F31/F34 (2012-2019) 330i B48 2.0L
BMW 3 Series F30/F31/F34 (2012-2019) 330i xDrive B48 2.0L
BMW 3 Series F30/F31/F34 (2012-2019) 340i B58 3.0L
BMW 3 Series F30/F31/F34 (2012-2019) 340i xDrive B58 3.0L
BMW 4 Series F32/F33/F36 (2014-2019) 428i N20 2.0L
BMW 4 Series F32/F33/F36 (2014-2019) 428i xDrive N20 2.0L
BMW 4 Series F32/F33/F36 (2014-2019) 435i N55 3.0L
BMW 4 Series F32/F33/F36 (2014-2019) 435i xDrive N55 3.0L
BMW 4 Series F32/F33/F36 (2014-2019) 430i B46 2.0L
BMW 4 Series F32/F33/F36 (2014-2019) 430i xDrive B46 2.0L
BMW 4 Series F32/F33/F36 (2014-2019) 440i B58 3.0L
BMW 4 Series F32/F33/F36 (2014-2019) 440i xDrive B58 3.0L
