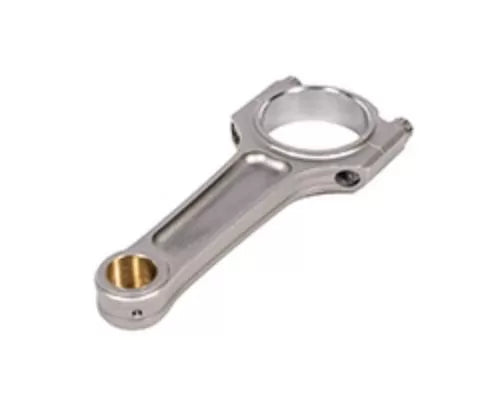

Manley BMW 5.709 T/T N54 Connecting Rod Set

14448-6

Manley "I" Beam connecting rods are manufactured from 4340 forgings to the same exacting standards developed and approved by our original equipment customers. There is a vast difference in quality between a Manley "H" Beam and the "other" inexpensive H-Beams on the market. Bend and twist is tightly controlled. Weight matched to +/- 1.5 grams. Cap fasteners are 3/8" ARP 2000 for the H-Beam and H-Tuff and 3/8" ARP Custom Age 625+ for the H-Tuff Plus.

Feautes:

• Forged from 4340 aircraft quality vacuum degassed material.
• Shot peened after machining to MIL spec and 100% individually magnafluxed.
• Specifically designed to handle high horsepower applications when using turbos and/or nitrous.
• Fasteners are 3/8".
• Flywheel horsepower range for these rods in a 6 cylinder application the range is 1,250+.

Specifications:

• Center-to-Center: 5.709"
• Big End Bore: 2.110"
• Big End Width: .823"
• Pin Diameter: .866" (22mm)
• Pin Bore: .8671"
• Gram Weight: 560

Fitments:

• BMW N54B30 (2006-2016)

Notes:

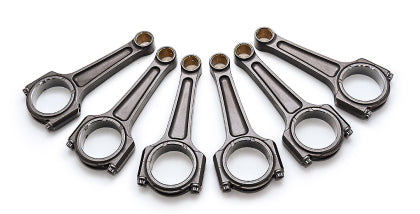

• Sold as a Set of 6

Applications

• 2006-2010 BMW 335i
• 2007-2010 BMW 535i
• 2007-2010 BMW 135i
• 2008-2010 BMW X6 xDrive35i
• 2009-2016 BMW Z4 sDrive35i
• 2008-2012 BMW 740i
• 2011-2013 BMW 335is
• 2011 BMW 1 Series M Coupe
• 2011-2016 BMW Z4 sDrive35is
• 2007-2010 Alpina B3
