CANchecked Brake Temperature Sensor Set - BMC04

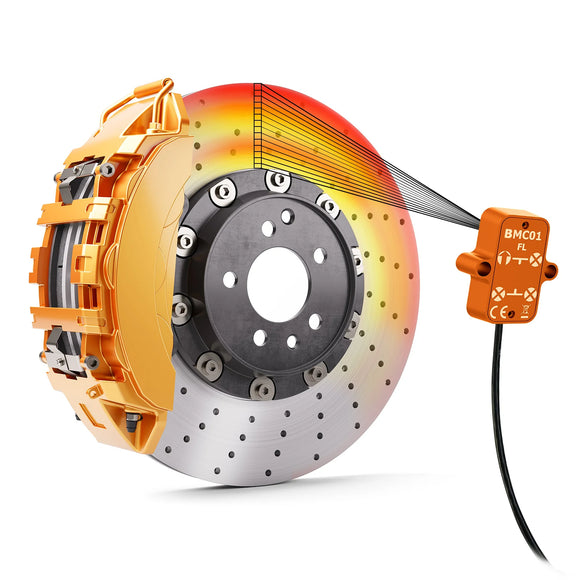

Enhance your racing or high-performance setup with a comprehensive set of four accurate, real-time brake temperature sensors. This set provides extensive insights across multiple channels, specifically designed to meet the rigorous demands of motorsport environments.

Key Features

• Temperature Range: Each sensor operates from -40 to +800°C
• Multi-Channel Customization: Each sensor offers up to 16 configurable channels for tailored data collection
• Field of View Options: 110° standard, with an optional 55° for focused measurements available upon request
• Compact and Durable Design:
  • Size: 45.5 x 25.5 x 12 mm per sensor
  • Weight: 25g per sensor
  • Housing: Available in aluminum or polyamide, rated IP66 for rugged conditions
  • Optional Protecting Lens: Additional lens option for enhanced durability and protection
• Flexible Power Input: Each sensor operates on 5–20V with an adjustable refresh rate of up to 64 Hz
• Seamless CAN Integration:
  • Supports CAN 2.0A and 2.0B standards
  • Adjustable bit rates and CAN termination options
  • Standard CAN-ID configurable for tire (0x310) or brake (0x210) data across the set
• Data Precision:
  • -200°C offset per sensor
  • 0.1°C per bit resolution for high-accuracy readings
• Easy Installation:
  • Includes four 0.5m AWG22 cables and DTM04-4P connectors for straightforward setup
• Built for Performance: IP66 rating ensures resilience against harsh environments

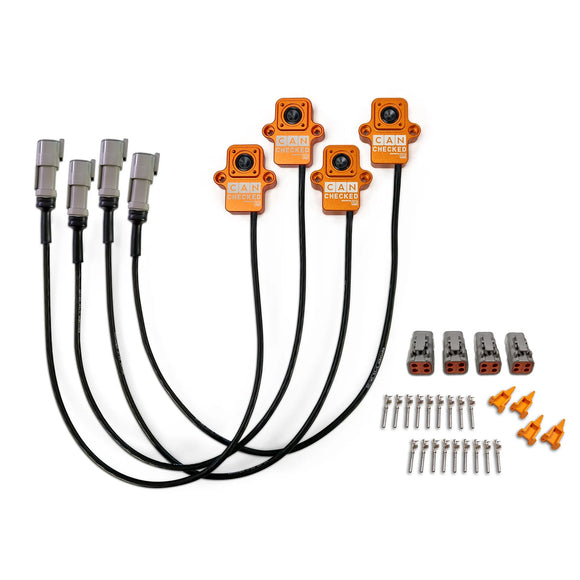

Whats included

• 4x BMC01 with 0.5m AWG22 cables and female DTM04 connector 4x male DTM Connectors
