1155

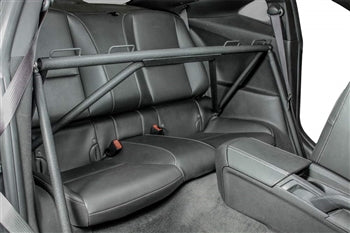

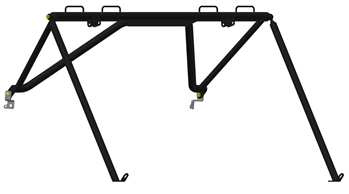

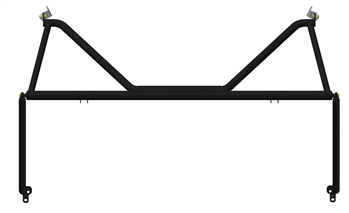

The R-1155 harness mount bar is made to mount harness in a 2016-present Camaro. The R-1155 harness mount bar utilizes wrap around shoulder harnesses for both the driver and passenger along with clip in mounting points for the lap belts.
Our bars are easy to install and remove, use only existing holes and mounting points, and will not damage the car in any way.
The 6th gen Camaro harness mount bar has been tested and certified by an independent lab to handle the types of forces required by the National Highway Traffic Safety Admin. DOT and SAE J385 Rev.MAR 95, Motor Vehicle Seat Belt Anchorages-Performance Requirements. The Camaro harness mount bar properly locates and supports racing shoulder harnesses relative to the driver. In the case of an accident, it helps protect the driver's shoulders and spine. The harness guides also prevent excessive shifting and fatigue of the driver during the high G loads of cornering and braking.
Strength requirements for harness mounts are considerably greater than those for harness guide bars since they must support the entire load applied to the belts. A mount really can't be relied on unless it has been tested to support the loads required by the National Highway Traffic Safety Administration. The Brey-Krause Harness Mounts support the loads specified by the National Highway Traffic Safety Admin. DOT for upper torso restraints in all automobiles. Tensile tests performed by an independent lab.
Features:
-
Harness guides prevent shifting of belts in high G turns
- Requires no modifications
- Tested by an independent lab to exceed DOT, SAE, and NHTSA standards
- Properly locates shoulder harnesses in relation to the driver
- Integrated outside lap belt mounts
Additional Related Products:
-
R-9171 Seat Track Adapter (for mounting aftermarket seats)
- R-9170 Seat Track Adapter (for mounting aftermarket seats)
- R-9172 Sub Strap Mount for Seat Track Adapters
Material: Type 304, stainless steel
Finish: Powdercoated in durable black wrinkle-finish
Weight: 16 lbs
Models: 6th Gen (2016+) Camaro
Installation: Bar attaches to seat belt mounts & seat track hardware.
Miscellaneous: This kit includes everything required for a proper 4-point harness set-up. 5 or 6 point harness setup possible with R-9171 & R-9170 Seat Track Adapters. Bar is designed to allow enough seat travel for tall drivers.
