R-1410

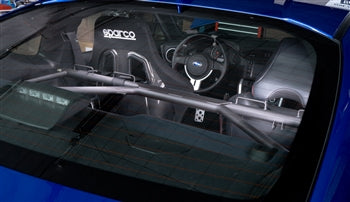

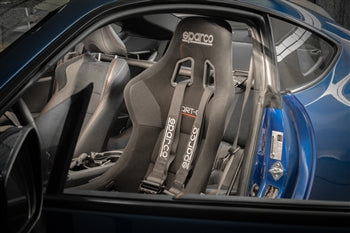

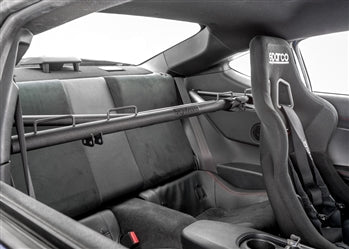

The R-1410 harness mount bar is made to mount a 4, 5, or 6 point harness in a 2012-Present Subaru BRZ, Scion FR-S, and Toyota 86. The R-1410 harness mount bar utilizes wrap around shoulder harnesses for both the driver and passenger along with clip in mounting points for the lap belts.
Our bars are easy to install and remove, use only existing holes and mounting points. This product does require a small cut be made in a replaceable plastic interior panel.
The Subaru BRZ, Scion FR-S, and Toyota 86 harness mount bar has been tested and certified by an independent lab to handle the types of forces required by the National Highway Traffic Safety Admin. DOT and SAE J385 Rev.MAR 95, Motor Vehicle Seat Belt Anchorages-Performance Requirements. The BRZ / FR-S / 86 harness mount bar properly locates and supports racing shoulder harnesses relative to the driver. In the case of an accident, it helps protect the driver's shoulders and spine. The harness guides also prevent excessive shifting and fatigue of the driver during the high G loads of cornering and braking.
Strength requirements for harness mounts are considerably greater than those for harness guide bars since they must support the entire load applied to the belts. A mount really can't be relied on unless it has been tested to support the loads required by the National Highway Traffic Safety Administration. The Brey-Krause Harness Mounts support the loads specified by the National Highway Traffic Safety Admin. DOT for upper torso restraints in all automobiles. Tensile tests performed by an independent lab.
Material: Type 304, stainless steel
Finish: Powdercoated in durable black wrinkle-finish
Weight: 16 lbs
Models: (1st Gen & 2nd Gen) 2012-Present Subaru BRZ, Scion FR-S, and Toyota 86
Installation: Bar attaches to seat belt mounts. Installation does require a small cut be made on a replaceable interior plastic panel.
Miscellaneous: This kit includes everything required for a proper 4-point harness set-up, for installing 5- or 6- point harnesses see
R-1486 & R-1487 side mounts for BRZ/FR-S/86. Bar is designed to allow enough seat travel for tall drivers.
