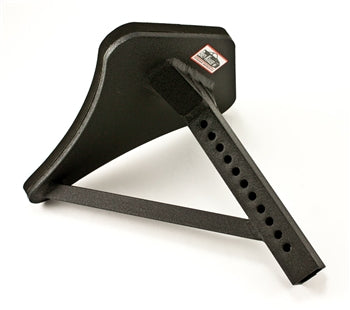

BK SEAT BRACE FOR FIXED HARD BACK RACING SEATS

R-9020

The “adjustable seat brace” is engineered to extend the protection of your roll cage to the back of your seat. The Brey-Krause adjustable seat brace is designed to fit 1-3/4”, 1-5/8” and 1-1/2” diameter roll bars and all BK harness mount bars. The mounting bracket is secured with bolts through two holes which are drilled through the roll bar tubing. Once bolted to the roll bar, the seat brace can be adjusted fore, aft, up, or down. This seat brace is designed for one piece (i.e. non-reclining) racing seats. The R-9019 is recommended for Porsche reclining seats. Mounting brackets are not included.

Material: 6061-T6 aluminum with ½” thick layer of high density foam.
Finish: Powder Coated Wrinkle Black
Weight: 3 Lbs.
Installation: Attaches to roll bars or Brey-Krause harness mount bars.
Miscellaneous: Foam firmly cushions the back of the seat against the support assembly.
Options:

This part requires the use of one of the following:
Roll Bars and Roll Cages
R-9021 Bolt-On - Seat Brace Mounting Kit - Roll Bar/Roll Cage tubing size 1 1/2" to 1 3/4"
R-9023 Bolt-On - Seat Brace Mounting Kit - Roll Bar/Roll Cage tubing size 1 1/2"
R-9022 Weld-On - Seat Brace Mounting Kit - Roll Bar/Roll Cage tubing size 1 3/4"
R-9025 Weld-On - Seat Brace Mounting Kit - Roll Bar/Roll Cage tubing size 1 1/2"

BK Harness Mount Bars and Trusses:
R-9024 Seat Brace Mounting Kit - All BK Harness Mount Bars with Integrated Brackets
R-9017 Seat Brace Mounting Kit - For R-1035 Harness Truss (Porsche 996/997)
R-9018 Seat Brace Mounting Kit - For R-1025 Harness Truss (Porsche 911 '74-'98)
