BTR-058420-2
Be advised: Image may differ from actual product.

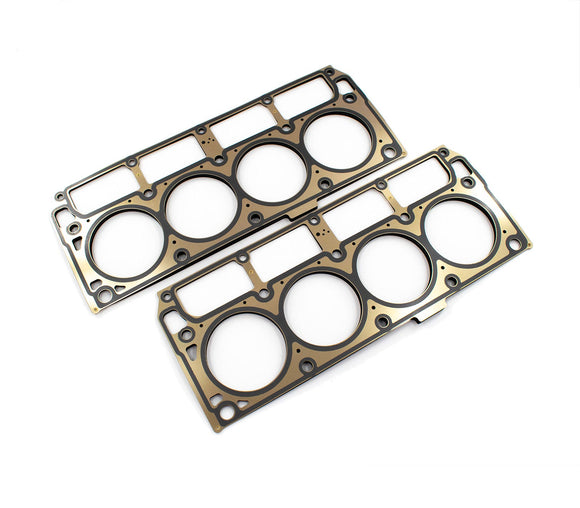

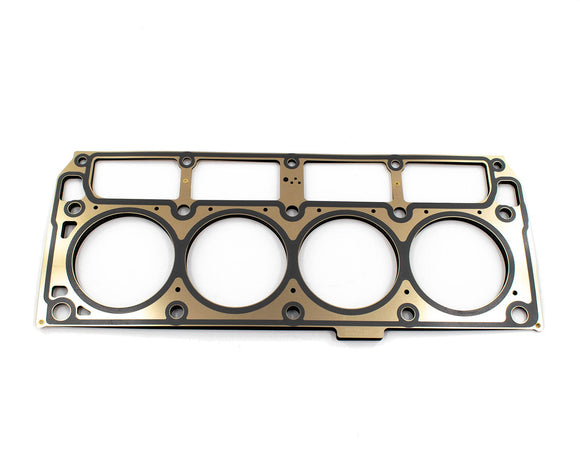

BTR SMALL BORE LS9 HEAD GASKET - 3.950" BORE - SOLD IN PAIRS - BTR-058420-2
The BTR LS9 head gasket can't be beat for performance and value, but traditionally, the smaller bore engines have had to make do with a head gasket bore 0.15" bigger than needed. By re-designing a smaller bore gasket, we increased the amount of gasket material between the bores another 0.15" for better durability . This is advantageous on small bore LS engines with higher cylinder pressures such as those found in power adder applications. These feature .055" thickness spread across 7 layers of steel.

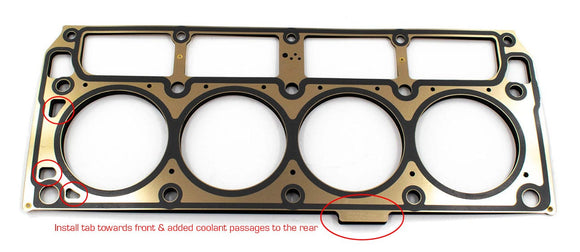

Install tab towards front & added coolant passages to the rear
DESIGNED TO WORK WITH A TRICK FLOW FAST AS CAST LS1 HEAD. May also work with other aftermarket cylinder heads.
| BTR SKU | BTR-058420-2 |
|---|---|
| Length | 26.000000 |
| Width | 12.000000 |
| Height | 4.000000 |
| Weight | 3.000000 |
| Brand | Brian Tooley Racing |
| Part Type | Head Gasket |
| Engine Type | Gen III/Gen IV LS |
| Bolt Count | 4-BOLT |
| Bore Opening | 3.950" |
| Compressed Thickness | .055" |
| Material | MULTI-LAYERED STEEL |
| Quantity | SOLD AS A PAIR |
