BMS 3 Gallon Stealth Tank for F chassis BMW

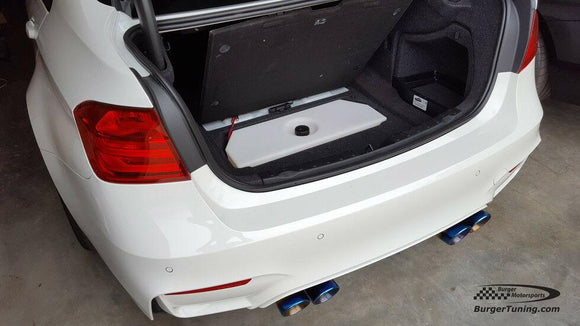

3 Gallon Stealth Tank for F Chassis BMW hides under the deck in your trunk!

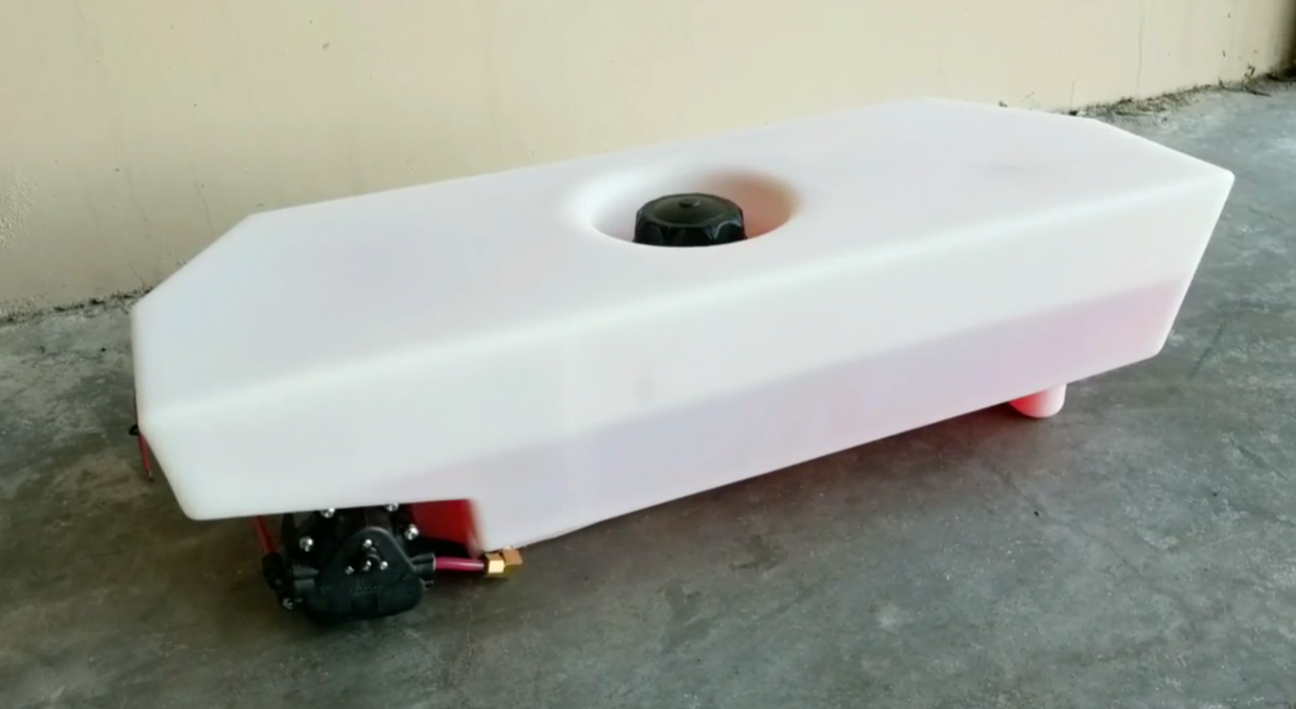

Our newest offering, this completely custom design fits in the hidden trunk cavity found in 2013+ F3X and 2015+ F8X chassis vehicles. The WMI pump mounts directly to the bottom of the tank allowing for a quick and clean installation. The bottom of the tank includes a sump and baffle allowing for consistent performance even as the tank drains. Includes 2-way vented black plastic cap and a compression pump feed fitting. Upgraded billet lid with 1-way check valve available.

Optional upgraded blue billet lid with 1-way check valve available here.

The nozzles are determined by the intended power and how many bungs your charge pipe has. The nozzles are 1/8” NPT and screw into bungs included on most aftermarket charge pipes. Our BMS "super atomizing" nozzles are well known for their great atomization and flow characteristics. The nozzle number represents the approximate gallons per hour of fluid when at full flow. Generally speaking, running two smaller nozzles is preferred to one larger nozzle for an equal flow to improve fluid atomization and distribution. Below are some general nozzle suggestions but feel free to email us for nozzle advice if your situation is unique.

Features & Benefits

• Pump mounts directly to the tank (pump sold separately)
• Works with all DDP 5800 pumps
• Super low profile design hides under the deck in the existing trunk cavity •
• Available in clear for visually checking fluid levels
• Includes 2-way vented black plastic cap
• Threaded mounting points in the feet of the tank
• Optional upgraded blue billet lid with 1-way check valve available here.
• Includes a compression pump feed fitting
• Made in the USA

Applications

• 2012-2018 3 Series F30 sedan
• 2014-2020 4 Series F32 coupe
• 2015-2020 F80 M3

• 2015-2020 F82 M4 (does not fit convertible)
