CAM-310041

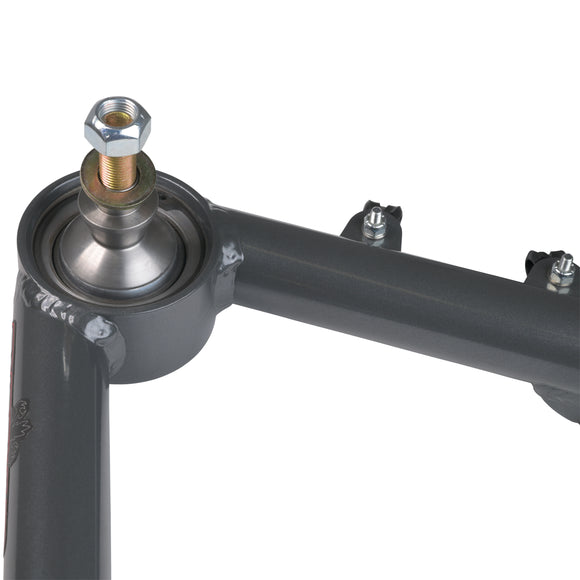

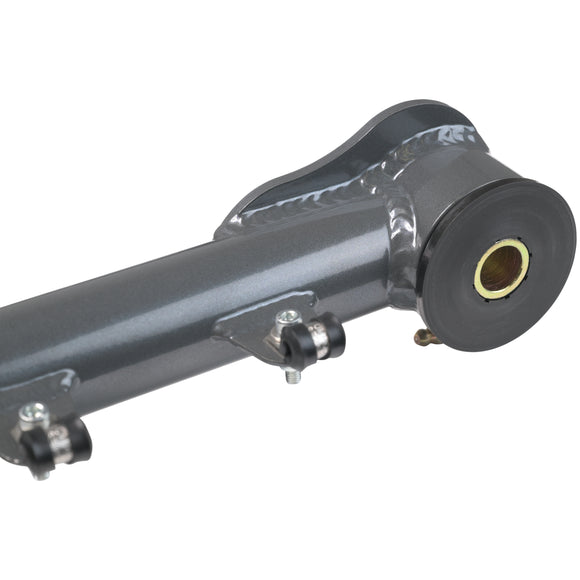

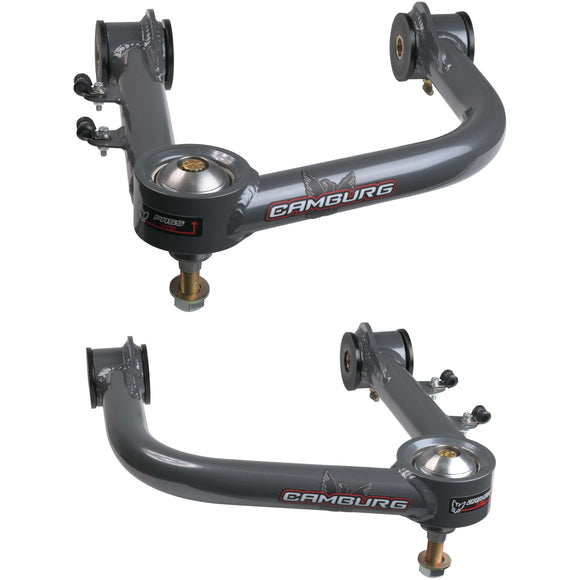

Our Camburg upper arms are designed to address the limitations of stock upper arms when lifting your truck. By replacing the stock ball-joint with a larger 1.50 uni-ball bearing, we improve wheel travel and durability under extreme conditions. We also adjust the camber curve and increase caster to correct geometry, resulting in improved driving characteristics and handling. Our arms are designed using CAD/CAM engineering software and manufactured in-house with precision. They feature thicker .156" wall round tubing, laser-cut and CNC-bent tubes, and MIG welding. The arms come with polyurethane frame pivot bushings with grease-able zerk fittings, FK 1.50" PTFE-lined uniballs, and steel gray powder-coating. All necessary hardware is included for installation. The arms are made in the USA and designed for 1-3" of lift, compatible with 2008-2022 Toyota Sequoias. Additionally, this suspension system is not compatible with 20" OEM wheels and tires and 18" OEM wheels with larger tires than stock
Fitment Notes
- May be used with most aftermarket coilovers
- Aftermarket Wheels and Tires Require Hub-Centric Spacers
- 18 (in) - 20 (in) OEM Wheels and Tires Require Hub-Centric Spacers
- May Require Trimming to Eliminate Tire Rubbing
Technical Details
Given the multitude of factors such as wheel size, offset/backspacing, tire size, brand preferences, and suspension specifics, adjustments like trimming the plastic inner fenders or modifying the body mounts behind the front tires may be necessary to prevent tire rubbing.
Specifications
-
Prop 65 Y/NNo
-
PositionUpper

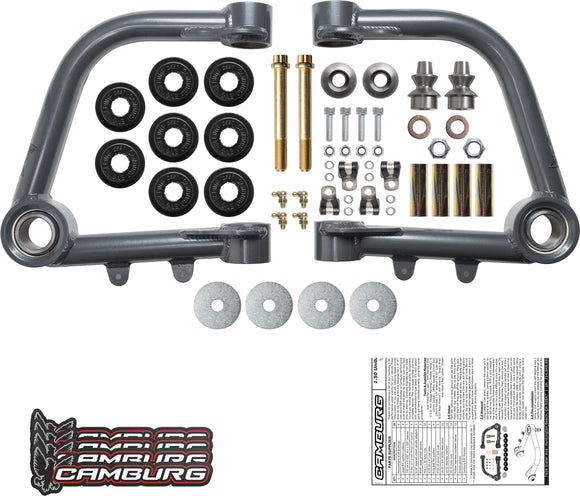

Hardware
-
Stainless Washer8
-
Nyloc Nut4
-
Bolt4
-
Grease Packet4
-
Stainless Rubber Clamp4
-
12pt Bolt2
-
Pivot Bushing8
-
Uniball Spacer2
-
Tapered Uniball Spindle Adaptor2
-
Flat Washer2
-
Sleeve4
-
Lock Nut2
-
90 degree Zerk Grease Fitting4
