CP-e SCT Livewire TS Plus Performance Programmer (Custom & Pre-loaded)

$1,040.15 CAD

cp-e SKU: UMEM00004Z

Earn [points_amount] when you buy this item.

UMEM00004Z

The Livewire TS+ unlocks your vehicle’s hidden performance by re-calibrating your vehicle’s computer for Maximum Horsepower & Torque, Increased Throttle Response, Firmer Shifts and even Increased Fuel Mileage. This product does not support any changes to your vehicle’s emission system. Tune your Ford to perfection with the Livewire TS Plus!

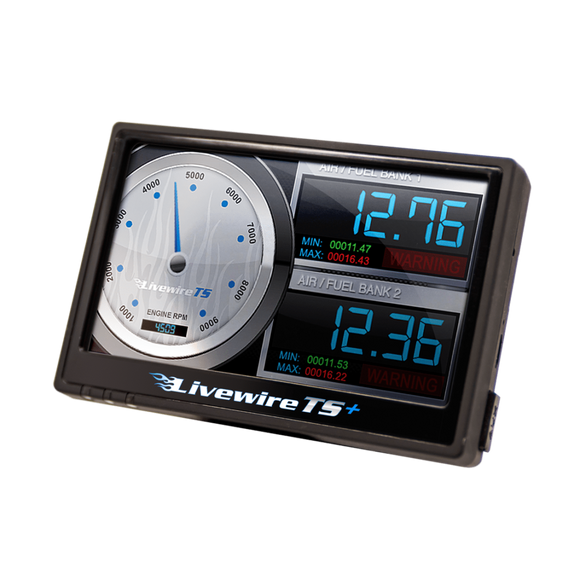

Color 4″ Touch Screen Display

Livewire TS+ features a full color 4″ touch screen display with built-in ambient light sensor for automatic brightness adjustment day & night.




Switch On-The-Fly*

Change power levels on the fly while driving. *Switch On-The-Fly available for select vehicles only.




Holds up to 10 Custom Tunes

The Livewire TS+ arrives Pre-Loaded with Dyno Proven performance tune files & holds up to 10 custom tuning files for Maximum tune flexibility.



SCT Livewire TS Plus Features

  • Automatic On / Off / Sleep Mode
    Tired of devices that stay on after the ignition is turned off? Livewire TS features both a Sleep & Auto Off mode. 2 minutes after the ignition is turned off, Livewire TS goes into sleep mode, drawing very little power. After 2 days of inactivity, it aut…
  • Available for both Gas & Diesel Vehicles
    Works with most 1996+ Gas & Diesel vehicles
  • Built-In Performance Calculator
    Built-In Horsepower, Torque, 1/4 Mile & 0-60MPH ET’s
  • Color 4″ Touch Screen Display
    Livewire TS features a full color 4″ touch screen display with built-in ambient light sensor for automatic brightness adjustment day & night.
  • High Speed Data Logging & Monitoring
    Need to monitor your vehicle’s engine parameters? No need for a separate monitoring device. View & record your vehicle’s PCM data on the Livewire TS.
  • Holds up to 10 Custom Tunes
    Holds up to 10 custom tuning files for Maximum tune flexibility.
  • Reads & Clears DTC Codes
    Reads & Clears PCM Diagnostic Trouble Codes.
  • Rear View Camera Input
    The Rear View Camera Input Connector is built-in to the Livewire TS OBD-II Cable for easy connection of most aftermarket Rear View Cameras!
  • User Adjustable Tune Options
    Adjust for common performance bolt-ons such as Cold Air Kits, Exhaust Systems & Gears.
  • User Adjustable Warning / Alerts
    Easy to configure gauge warning & alerts for critical engine parameters.
  • User Selectable Graphics & Gauge Layouts
    Customize the look of your Livewire TS with user selectable themes, colors and gauge layouts.

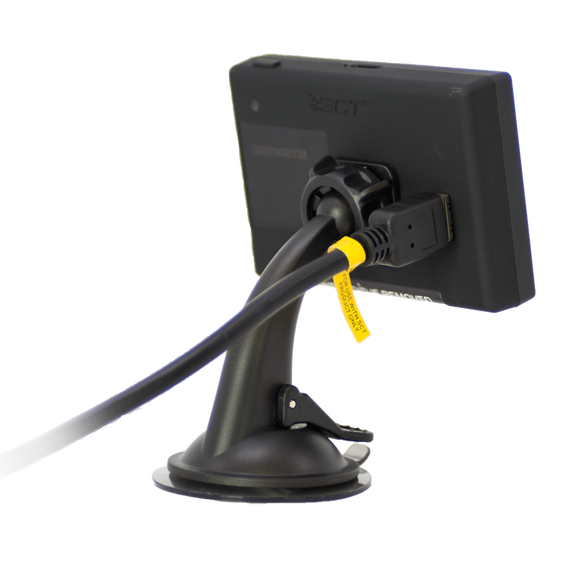

  • Windshield Mount Included
    No mounting solution required. Livewire TS includes a suction cup style mount for easy mounting on your vehicle’s windshield.


What Can You Adjust with Livewire TS Plus?

Adjustable Options vary for each vehicle and are not available on all vehicles

  • Axle Ratio

    Correct the vehicle speedometer (and fuel efficiency calculations) if you have changed the gear ratio on your vehicle. If no gear ration modifications have been made to the vehicle, then choose the stock setting when the tuner prompts you to choose a gear ratio. This will ensure that no modifications are made to the stock program.

  • CMCV Delete

    Additionally allows you to disable the CMCV (Charge Motion Control Valve) in your vehicles PCM to prevent a Check Engine light and other issues associated with removing the CMCV plates in your vehicle.

  • Disable DOD

    Allows you to disable / enable the Displacement On Demand functions of your vehicles PCM.

  • Exhaust Y Pipe

    Support for Kooks High Flow Y Pipes

  • Fan Control

    Lowers the Temperature at which the Fan turns on.

  • Front Mounted Intercooler

    Adjusts for the usage of a front mounted intercooler

  • Fuel Injectors

    Allows you to adjust for different sized fuel injectors.

  • Global Spark

    Allows addition or removal of timing across all RPM ranges

  • Grill Shutter

    Adjusts calibration to compensate for removal of Grill Shutter

  • Headers

    Allows adjustment for Longtube headers

  • Idle Adjust

    Enable and select a value for Engine Idle position. This is a great feature for keeping voltage in the vehicle up while running auxiliary electronics off of the vehicle’s power system.

  • Intake Airbox

    Allows an aftermarket intake to be run on the vehicle without a Check Engine Light. For Intake Kits that require tuning, this will provide a selection of available intake kits.

  • Jake Brake

    Used as an exhaust brake to increase engine braking while coasting towing heavier loads. Helps lower brake temperatures.

  • Lock in 1-2-3

    Locks the converter in 1st, 2nd and 3rd. Aids in engine braking, increases fuel economy, and can be used for drag racing as well.

  • Locked At CT

    Keeps the torque converter locked during deceleration to aid in engine braking. This is less aggressive than the Jake Brake file so it may be ideal for smaller loads. It can be used in conjunction with the Jake Brake as well.

  • Mass Air Meter (MAF)

    Allows you to select from different aftermarket MAF (Mass Air Meters).

  • Pedal Response

  • Rev Limiter

    Regulate the highest RPM that an engine can reach before the engine is electronically limited. Increasing the RPM limit is recommended only for racing purposes. Once of the most important ways to protect your engine from damage is to keep the RPMs from going too high.

  • RPM Based Spark

    Allows you to Add or Remove Timing by RPM Range. (0-2000)(2000-4000)(4000-8000)

  • Shift Assist

  • Sound Symposer

    Enable and Disable The Sound Symposer

  • Speed Limiter

    Change the top speed that the vehicle will reach before the engine automatically limits the power needed to go faster.

  • Super Charger Pulley

    Supports aftermarket super charger pulley sizes.

  • Take Off Assist

  • Throttle Body

    Compensates for aftermarket Throttle Bodies (BBK 65/85/90 MM)

  • Tire Size

    Correct the speedometer if you have changed your tire size from stock.

  • Torque Reduction

    Reduce torque durning shifting (makes shift more firm)

  • Traction Control

    Allows you to disable the vehicles Traction Control without using the button in the vehicle.

  • Transmission Shift Firmness

    Change the shift firmness of an automatic transmission.

  • Transmission Shift Points

    Change the RPMs at which an automatic transmission will change gears.



Quick Start Guide

User Guide
