CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road
- OEM specified Plastic Tank-Aluminum Core Construction
- Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
- Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
- Tubes - Welded Type or Latest Generation "B-Tube" Design
- Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
- 100% leak tested before leaving factory at 150% of operating pressure
- Industry Best Packaging - "10 Foot Drop Test" Standard
- Drop-in Fit
- High Performance Transmission Cooler with special Built-in Turburlator, when applicable
- All components are installed, torqued, & tested on Radiator during assembly

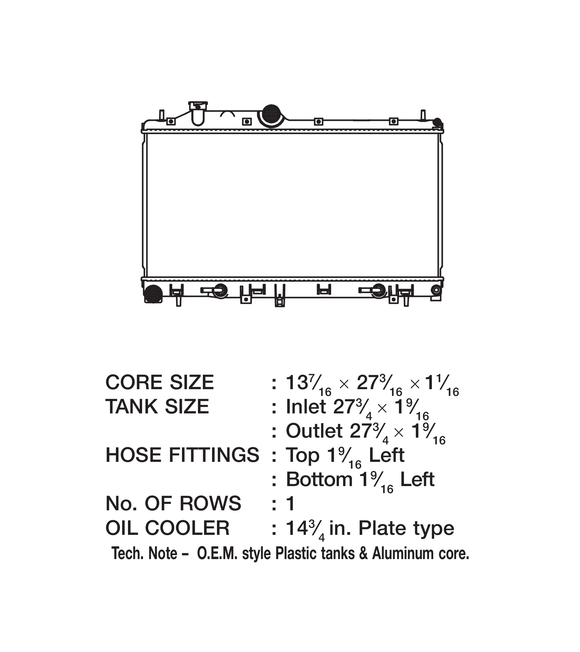

| Bottom Hose Fitting (in): |
1 9/16 Left (in) |
|
|
| Box Length (in): |
29 11/16 |
|
|
|
|
| Core Length (in): |
13 7/16 (in) |
|
|
|
| Core Thickness (in): |
7/8 (in) |
|
|
|
| Cross-flow/ Down-flow: |
Down Flow |
|
|
|
|
| Inlet Length (in): |
27 13/16 |
|
|
|
|
| Oil Cooler (in): |
14 3/4 (high-efficiency Plate Type) |
|
| Outlet Length (in): |
27 13/16 |
|
| Outlet Width (in): |
1 9/16 |
|
| Radiator Cap Supplied: |
No |
|
|
| Tech Note: |
O.E.M. style Plastic tanks & Aluminum core. |
|
| Top Hose Fitting (in): |
1 9/16 Centre (in) |
|
| Make |
Model |
Qualifiers |
Year |
| Subaru |
Forester |
- Position: N/A
- 2.5L H4 2458cc
- Turbocharged
|
2009-2013 |
| Reference Number |
Reference Name |
| 13095 |
DPI |
| 13095 |
TYC |
| 45119 SC020 |
OEM |
| 8013095 |
APDI |
| CU13095 |
SPI |
| SU3010654 |
Partslink |
