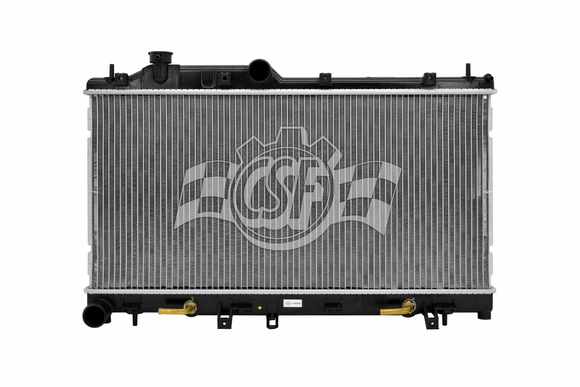

CSF 12-16 Subaru Impreza 2.0L OEM Plastic Radiator

CSF 12-16 Subaru Impreza 2.0L OEM Plastic Radiator

$129.99 CAD

Shipping calculated at checkout

CSF SKU: csf3515

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

3515

1 Row Plastic Tank Aluminum Core

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
  • Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
  • Tubes - Welded Type or Latest Generation "B-Tube" Design
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • High Performance Transmission Cooler with special Built-in Turburlator, when applicable
  • All components are installed, torqued, & tested on Radiator during assembly
Bottom Hose Fitting (in): 1 9/16 Right (in)
Box Height (in): 4 1/2
Box Length (in): 29 7/8
Box Weight (lbs): 8
Box Width (in): 20 13/16
Core Length (in): 13 3/8 (in)
Core Material: Aluminum
Core Thickness (in): 5/8 (in)
Core Width (in): 27 (in)
Cross-flow/ Down-flow: Down Flow
Csf Cap Number: 4540
Hazardous Material: No
Inlet Length (in): 27 13/16
Inlet Width (in): 1 1/8
No. Of Rows: 1
Oil Cooler (in): 14 3/4 (high-efficiency Plate Type)
Outlet Length (in): 27 13/16
Outlet Width (in): 1 1/8
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tanks & Aluminum core;Multifit model with Dual Size Heater Pipe on Top RHS with Plug & Dual Oil Cooler Fittings.
Top Hose Fitting (in): 1 9/16 Left (in)
Make Model Qualifiers Year
Subaru Crosstrek
  • Position: N/A
  • 2.0L H4 1995cc
 2016-2017
Subaru Forester
  • Position: N/A
  • 2.5L H4 2458cc
  • Naturally Aspirated
 2009-2010
Subaru Forester
  • Position: N/A
  • 2.5L H4 2498cc 152ci
  • Naturally Aspirated
 2011-2013
Subaru Impreza
  • Position: N/A
  • 2.0L H4 1995cc
 2012-2016
Subaru Impreza
  • Position: N/A
  • 2.0L H4 1995cc 122ci
 2013-2016
Subaru Impreza
  • Position: N/A
  • WRX
  • 2.5L H4 2458cc
 2008-2013
Subaru Impreza
  • Position: N/A
  • WRX STI
  • 2.5L H4 2458cc
 2008-2014
Subaru Impreza
  • Position: N/A
  • Outback Sport
  • 2.5L H4 2458cc
 2008-2011
Subaru Impreza
  • Position: N/A
  • WRX Premium
  • 2.5L H4 2458cc
 2009-2013
Subaru Impreza
  • Position: N/A
  • WRX Limited
  • 2.5L H4 2458cc
 2010-2013
Subaru Impreza
  • Position: N/A
  • WRX STI Special Edition
  • 2.5L H4 2458cc
 2010
Subaru Impreza
  • Position: N/A
  • WRX STI Limited
  • 2.5L H4 2458cc
 2011-2014
Subaru Legacy
  • Position: N/A
  • 2.5L H4 2458cc
 2005-2009
Subaru Outback
  • Position: N/A
  • 2.5L H4 2458cc
 2005-2010
Subaru WRX
  • Position: N/A
  • 2.5L H4 2458cc
 2012-2014
Subaru WRX STI
  • Position: N/A
  • 2.5L H4 2458cc
 2013-2014
Subaru XV Crosstrek
  • Position: N/A
  • 2.0L H4 1995cc
 2015
Subaru XV Crosstrek
  • Position: N/A
  • 2.0L H4 1995cc
  • GAS
 2013-2014
Reference Number Reference Name
13091 DPI
13092 TYC
13092 DPI
2777 DPI
2778 TYC
2778 DPI
45111 AG00A OEM
45111 AG01A OEM
45111 AG02A OEM
45111 AG03A OEM
45111 AG07A OEM
45111 AG08A OEM
45111 AG09A OEM
45119 AG010 OEM
45119 FG000 OEM
45119 FG010 OEM
45119 FG040 OEM
45119 FG050 OEM
45119 SC000 OEM
45119 SC010 OEM
45119 SC090 OEM
8012777 APDI
8012778 APDI
8013091 APDI
CU13091 SPI
CU13092 SPI
CU2777 SPI
CU2778 SPI
SU3010147 Partslink
SU3010149 Partslink
SU3010150 Partslink
SU3010651 Partslink
SU3010652 Partslink
SU3010656 Partslink
