3632

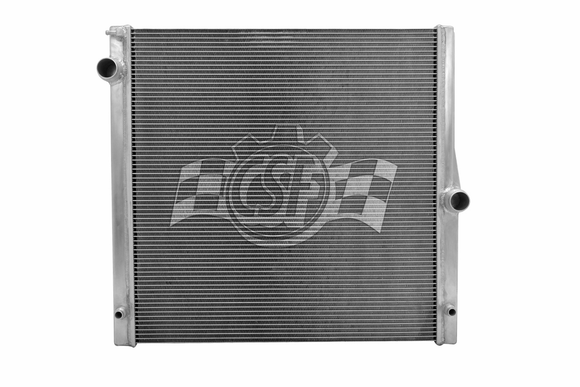

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road
- 100% OE style & OE specs for "Dop-in fit"
- Pre-installed & tested drain plug
- 100% Hydrostatic tested at 1.5 times operating pressure

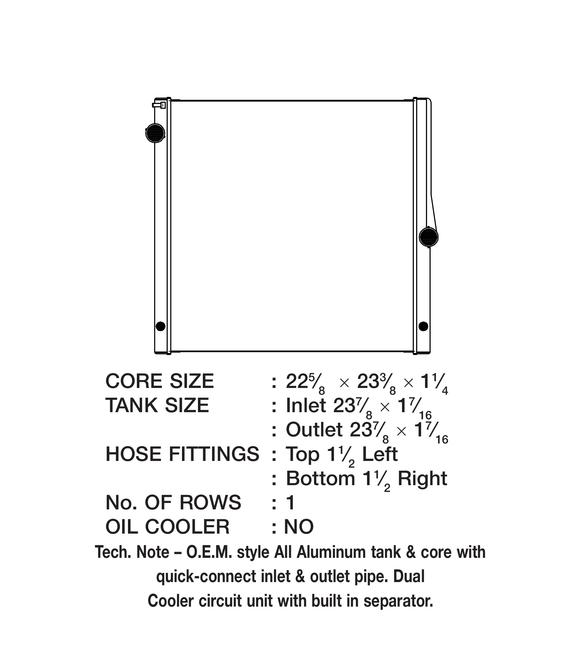

| Bottom Hose Fitting (in): |
1 1/2 Right (in) |
|
|
|
|
|
|
|
| Core Length (in): |
22 5/8 (in) |
|
|
|
| Core Thickness (in): |
1 1/4 (in) |
|
| Core Width (in): |
23 3/8 (in) |
|
| Cross-flow/ Down-flow: |
Cross Flow |
|
|
|
| Inlet Length (in): |
23 13/16 |
|
|
|
|
| Outlet Length (in): |
23 13/16 |
|
| Outlet Width (in): |
1 7/16 |
|
| Radiator Cap Supplied: |
No |
|
|
| Tech Note: |
O.EM. Style All Aluminum tanks & core;with quick-Connect inlet and outlet pipe;Dual cooler circuit unit with built in separator. |
|
| Top Hose Fitting (in): |
1 1/2 Left (in) |
|
| Make |
Model |
Qualifiers |
Year |
| BMW |
X5 |
- Position: N/A
- 4.8L V8 4837cc
|
2007-2010 |
| BMW |
X5 |
- Position: N/A
- 3.0L L6 2996cc
- GAS
|
2007-2010 |
| Reference Number |
Reference Name |
| 13336 |
DPI |
| 17117585035 |
OEM |
| 8013336 |
APDI |
| BM3010171 |
Partslink |
This website does not show live stock.
If the product is in stock we ship same/next day.
If a product needs to be ordered in the typical wait time is 1-2 weeks (Can Be Longer). This means the product is special ordered.
In General Special orders cannot be canceled, although some brands and suppliers allow it with a restocking fee and or return shipping.
Shipping times vary depending if the part is in stock at our warehouse and which shipping option is chosen at checkout.
Please contact us for an accurate ETA and availability.
